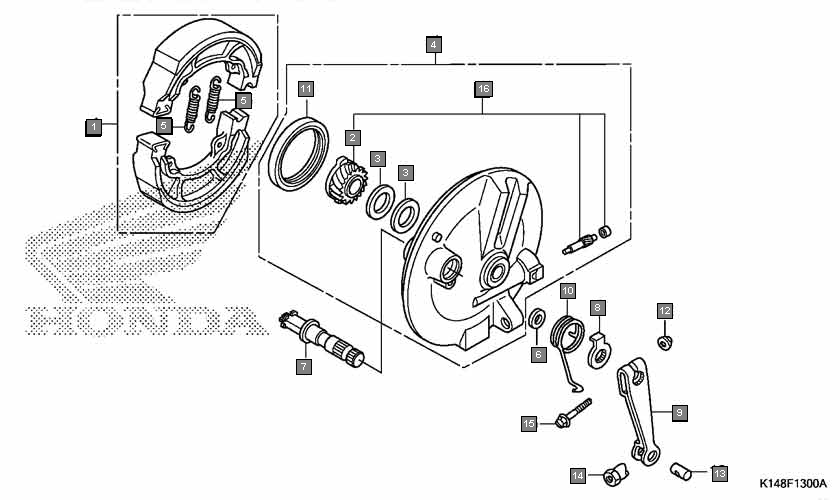

Motorcycles Dream Yuga CB110E Frame Front brake panel
Ref.No. Part No. Description Oty
1 06430KVTD10 SHOE SET, BRAKE(ASK) 1
2 06430KTN700 SHOE SET, BRAKE(JB) 1
3 44806KTE910 GEAR, SPEEDOMETER(21T) 1
4 44809KTC900 WASHER, SPEEDOMETER GEAR 2
5 45010KTE951ZA PANEL SUB COMP., FR. BRAKE *NH303M* MAT AXIS GRAY METALLIC 1
6 45133KCC900 SPRING, FR. BRAKE SHOE (FOR RR.) 2
7 43151329000 SPRING, BRAKE SHOE (ASK) 2
8 45133KPL900 SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) 2
9 45134250000 DUST SEAL, BRAKE CAM 1
10 45141KTC900 CAM, FR. BRAKE 1
11 45145096650 INDICATOR, FR. BRAKE 1
12 45410K23900 ARM, FR. BRAKE 1
13 45435GB2720 SPRING, BRAKE ARM RETURN 1
14 91251GK4003 OIL SEAL, 47X60X7(ARAI) 1
15 9405006000 NUT, FLANGE, 6MM 1
16 9501532001 JOINT B, BRAKE ARM 1
17 9501542000 NUT B, BRAKE ROD ADJUSTING 1
18 957010603200 BOLT, FLANGE, 6X32 1
19 957020603200 BOLT, FLANGE, 6X32 1
20 44820KTE911 GEAR SET, SPEEDOMETER 1
