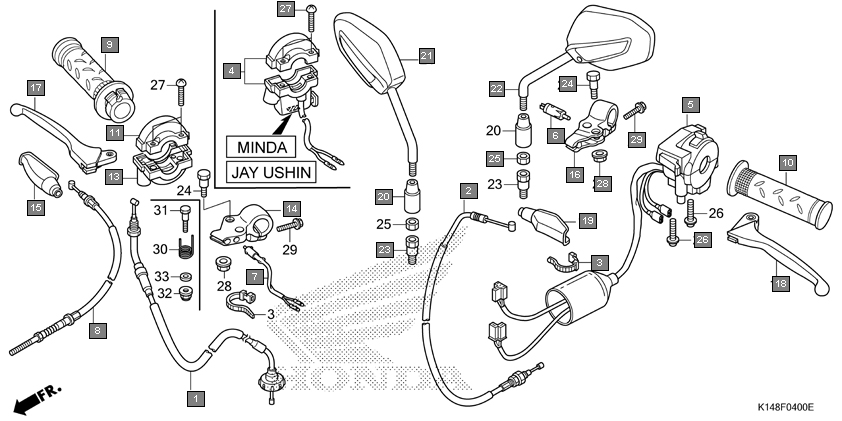

Motorcycles Dream Yuga CB110E Frame Handle lever/switch/cable/mirror
Ref.No. Part No. Description Oty
1 06179K23900 CABLE SET, THROTTLE 1
2 17920K14900 CABLE SET, THROTTLE 1
3 22870K14901 CABLE COMP., CLUTCH 1
4 32161KSP920 BAND B1, WIRE 2
5 35200K14901 SWITCH ASSY., WINKER 1
6 35200K14601 SWITCH ASSY., WINKER(MINDA) 1
7 35340KZAW01 SWITCH ASSY., FR. STOP 1
8 45450K23902 CABLE COMP., FR. BRAKE (SUPRAJIT) 1
9 45450K14901 CABLE COMP., FR. BRAKE(HI-LEX) 1
10 53140K14900 GRIP COMP., THROTTLE 1
11 53166KSP900 GRIP, L. HANDLE 1
12 53167KZAW00 HOUSING, UPPER THROTTLE 1
13 53168KZAW00 HOUSING, UNDER THROTTLE 1
14 53171K14900 BRACKET, R. HANDLE LEVER 1
15 53171KCC900 COVER, R. HANDLE LEVER 1
16 53172K14900 BRACKET, L. HANDLE LEVER 1
17 53175KYY900 LEVER COMP., R. HANDLE 1
18 53178KYY900 LEVER COMP., L. HANDLE 1
19 53179KTC900 COVER, L. HANDLE LEVER 1
20 88114198D10 CAP, LOCK NUT 2
21 88210KWS902 MIRROR COMP., R. 1
22 88220KWS902 MIRROR COMP., L. 1
23 90103KTE920 BOLT, ADAPTER, 10MM 2
24 90113KYY900 BOLT, HANDLE LEVER PIVOT 2
25 90201MW3620 NUT, HEX., 10MM (LEFT HAND THREAD) 2
26 93500050200G SCREW, PAN, 5X20 2
27 93500050220G SCREW, PAN, 5X22 2
28 9405006000 NUT, FLANGE, 6MM 2
29 957020602200 BOLT, FLANGE, 6X22 2
30 957010602200 BOLT, FLANGE, 6X22 2
