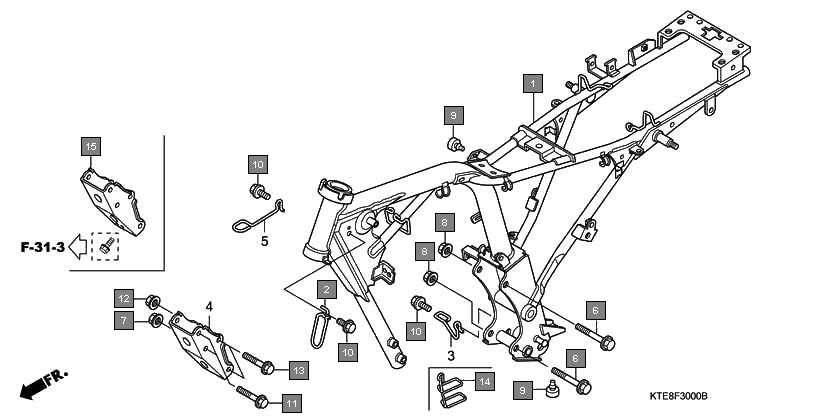

Motorcycles CB Shine CBF125MCA Frame Frame body
Ref.No. Part No. Description Oty
1 50100KTEA00 BODY COMP., FRAME 1
2 50187KTE910 GUIDE, MAIN HARNESS 1
3 50296KTE910 GUIDE, DRAIN HOSE 1
4 50351KTE910 PLATE, FR. ENGINE HANGER 1
5 50721KTE910 GUIDE, CLUTCH CABLE 1
6 90019399010 BOLT, FLANGE, 10X110 2
7 9405008000 NUT, FLANGE, 8MM 2
8 9405010000 NUT, FLANGE, 10MM 2
9 9501162000 RUBBER B, STAND STOPPER 2
10 957010601200 BOLT, FLANGE, 6X12 3
11 957020601200 BOLT, FLANGE, 6X12 3
12 958010808500 BOLT, FLANGE, 8X85 2
13 958020808500 BOLT, FLANGE, 8X85 2
