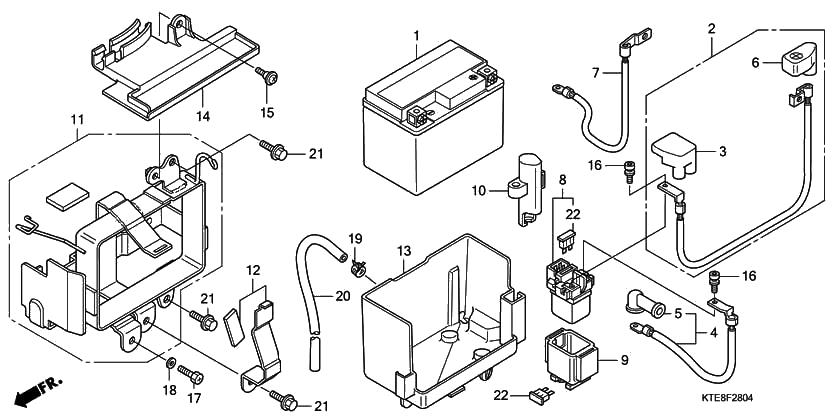

Motorcycles CB Shine CBF125MCA Frame Battery(cbf125ca/a/mca)
Ref.No. Part No. Description Oty
1 31500KWS901 BATTERY ASSY.(ETZ3)(EXIDE) 1
2 31500KVT941 BATTERY ASSY.(ETZ4)(EXIDE) 1
3 32401KTEA21 CABLE, STARTER MAGNETIC BATTERY 1
4 32406KAZ010 COVER, STARTER MAGNETIC TERMINAL 1
5 32410KTEA20 CABLE, STARTER MOTOR 1
6 32411253000 COVER, STARTER MOTOR TERMINAL 1
7 32417KRE900 COVER, BATTERY TERMINAL 1
8 32601KTEA20 CABLE, BATTERY EARTH 1
9 35850KEB620 SWITCH ASSY., STARTER MAGNETIC 1
10 35856KTE930 RUBBER, SHOCK 1
11 38201KTE930 HOLDER, FUSE 1
12 50380KTEA00 BOX COMP., BATTERY 1
13 50380KTEA20 BOX COMP., BATTERY 1
14 50381KTEA00 BAND, BATTERY 1
15 50385KTEA00 TRAY, BATTERY 1
16 50386KTEA00 COVER, BATTERY 1
17 90101GE0000 SCREW, HINGE PATCH 1
18 90111MR5000 BOLT, SOCKET, 5X9 2
19 92301060120A BOLT, RECESSED, 6X12 1
20 9410106800 WASHER, PLAIN, 6MM 1
21 950024085008 CLAMP, TUBE(D8.5) 1
22 950055043030 TUBE, 5X430(95005-50001-30M) 1
23 957010601000 BOLT, FLANGE, 6X10 3
24 957020601000 BOLT, FLANGE, 6X10 3
25 9820032000 FUSE, BLADE(20A) 2
