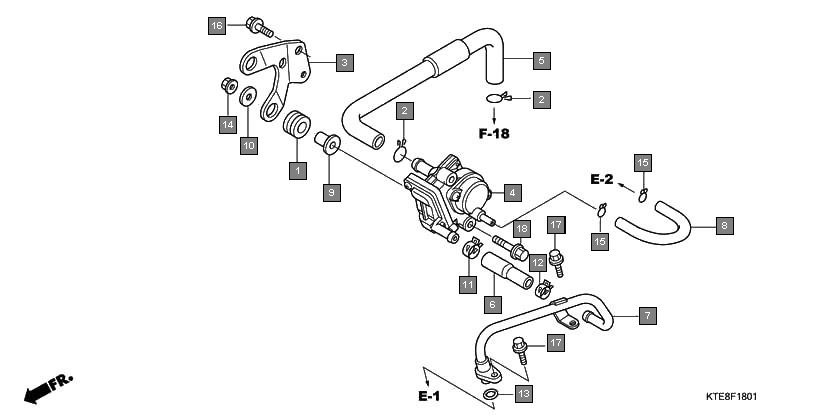

Motorcycles CB Shine CBF125MCA Frame Air suction valve(carburetor)
Ref.No. Part No. Description Oty
1 11344MB0000 GROMMET A, RR. COVER(8X16X6.6) 2
2 17316611000 CLIP, BREATHER TUBE 2
3 17365KTE910 STAY, AIR SUCTION VALVE 1
4 18600KTE912 VALVE ASSY., AIR SUCTION 1
5 18601KTE910 TUBE A, AIR SUCTION VALVE 1
6 18602KTE910 TUBE B, AIR SUCTION VALVE 1
7 18640KTE910 PIPE COMP., AIR FEED 1
8 18655KTE910 TUBE, AIR SUCTION VALVE(PB) 1
9 83119GT4000 COLLAR, METER 2
10 90450ZA0000 WASHER, PLAIN, 6X16 2
11 90678MR1690 CLIP, HOSE 1
12 90682SA0670 CLAMP, CANISTER HOSE 1
13 91309MJ0003 O-RING, 9.8X2.8(ARAI) 1
14 94001060000S NUT, HEX., 6MM 2
15 9500202070 CLIP, TUBE(B7) 2
16 957010601200 BOLT, FLANGE, 6X12 1
17 957020601200 BOLT, FLANGE, 6X12 1
18 957010601600 BOLT, FLANGE, 6X16 2
19 957020601600 BOLT, FLANGE, 6X16 2
20 960010602500 BOLT, FLANGE, 6X25 2
