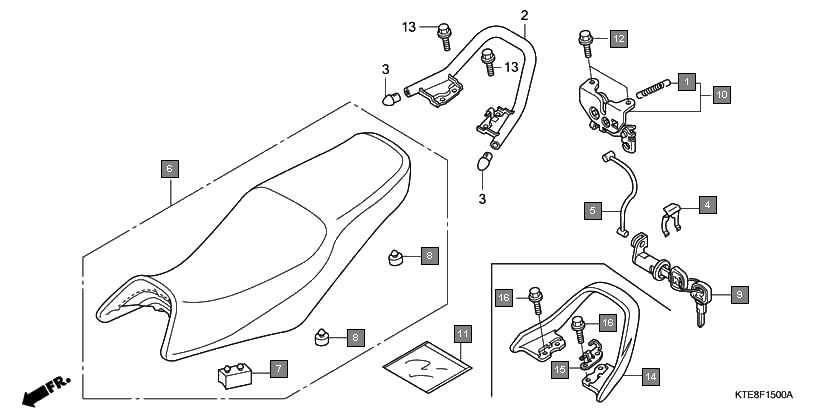

Motorcycles CB Shine CBF125MCA Frame Seat(1)
Ref.No. Part No. Description Oty
1 16574ZG8300 SPRING, LEVER 1
2 75581GN8920 SPRING, LOCK KEY SETTING 1
3 77156KTE910 CABLE, SEAT LOCK 1
4 77200KTEA00 SEAT ASSY., DOUBLE *TYPE1* 1
5 77204KCC900 RUBBER A, SEAT SETTING 2
6 77206KTE910 RUBBER, SEAT SETTING 4
7 77225KTE911 LOCK ASSY., SEAT 1
8 77235KTE910 CATCH COMP., SEAT 1
9 77251KPL900 BAG, SERVICE BOOK 1
10 957010601200 BOLT, FLANGE, 6X12 2
11 957020601200 BOLT, FLANGE, 6X12 2
12 50400KTE950ZB GRIP, RR. *NHA04M* GENY GRAY METALLIC 1
13 50400KTE950ZC GRIP, RR. *NH1* BLACK 1
14 50400KTE950ZD GRIP, RR. *PB374M* VIBRANT BLUE METALLIC 1
15 50400KTE950ZE GRIP, RR. *R329M* REBEL RED METALLIC 1
16 77106KTE950 STAY, HELMET HOLDER 1
17 957010802000 BOLT, FLANGE, 8X20 4
18 957020802000 BOLT, FLANGE, 8X20 4
