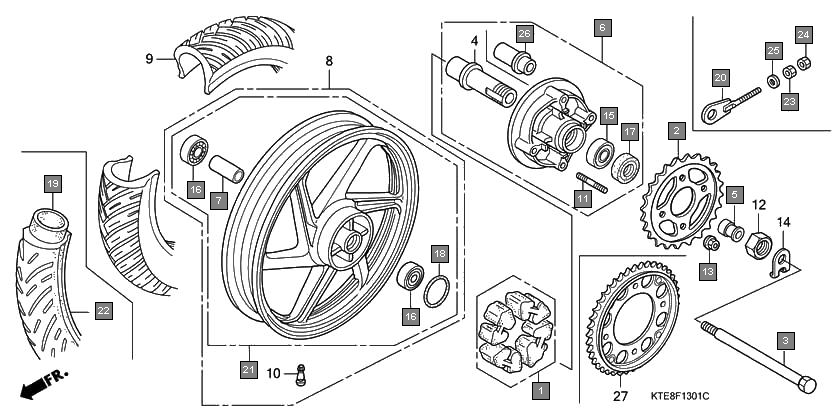

Motorcycles CB Shine CBF125MCA Frame Rear wheel(2)
Ref.No. Part No. Description Oty
1 06410KTE910 DAMPER SET, WHEEL 1
2 41201KTE910 SPROCKET, FINAL DRIVEN(41T) 1
3 42301KTEA00 AXLE, RR. WHEEL 1
4 42304KTEA00 COLLAR, RR. AXLE SLEEVE 1
5 42615KTEA00 FLANGE SUB ASSY., FINAL DRIVEN 1
6 42620KTE950 COLLAR, RR. AXLE DISTANCE 1
7 90128KTE910 BOLT, STUD, 8X20 4
8 90309KTE911 NUT, FLANGE SPECIAL, 8MM 4
9 961506203010 BEARING, RADIAL BALL, 6203UU 1
10 961406301010 BEARING, RADIAL BALL, 6301U 2
11 91251KGH901 DUST SEAL, 27X40X4.5(ARAI) 1
12 91304704000 O-RING, 42MM 1
13 06427KTE910 TUBE SET, TUFF UP 1
14 40543KTE910 ADJUSTER COMP., R. CHAIN 1
15 42650KTE950 WHEEL SUB ASSY., RR. 1
16 42711KTC901 TIRE, RR.(MRF) (2.75-18 6PR 48P) 1
17 90302KBP900 NUT, SPECIAL, 6MM 1
18 94001060000S NUT, HEX., 6MM 1
19 9410106000 WASHER, PLAIN, 6MM 1
20 42303KWF950 SLEEVE, RR. WHEEL 1
