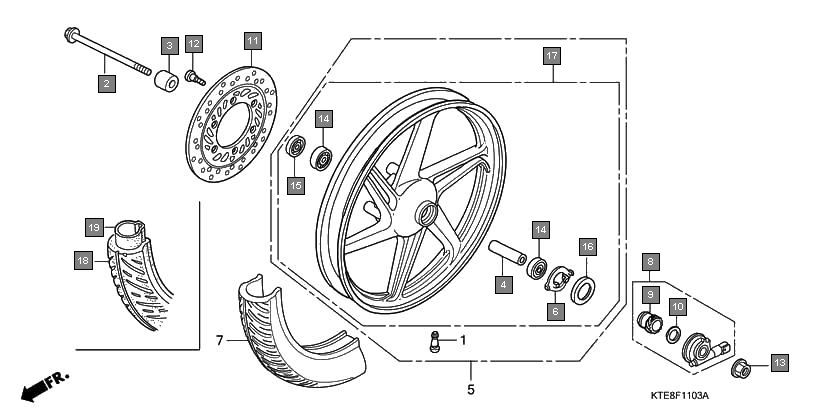

Motorcycles CB Shine CBF125MCA Frame Front wheel(4)
Ref.No. Part No. Description Oty
1 44301KPL900 AXLE, FR. WHEEL 1
2 44311KSP900 COLLAR, FR. WHEEL SIDE 1
3 44620KSP900 COLLAR, FR. AXLE DISTANCE 1
4 44680410000 RETAINER, GEAR BOX 1
5 44800KSP900ZC BOX ASSY., SPEEDOMETER GEAR *NH105* MAT BLACK(#15-#20) 1
6 44804KSP901 GEAR, SPEEDOMETER 1
7 44809KPL900 WASHER, SPEEDOMETER GEAR 1
8 45251KVE901 DISK, FR. BRAKE 1
9 90105KSP870 BOLT, DISK, 8X24 6
10 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
11 961506301010 BEARING, RADIAL BALL, 6301UU 2
12 91251KPH901 DUST SEAL, 21X37X7(ARAI) 1
13 91258410013 DUST SEAL, 40X50X5(ARAI) 1
14 44650KSP870 WHEEL SUB ASSY., FR. 1
15 44711KFN852 TIRE, FR.(2.75-18 42P) 1
16 44712KFN852 TUBE(2.75-18) 1
