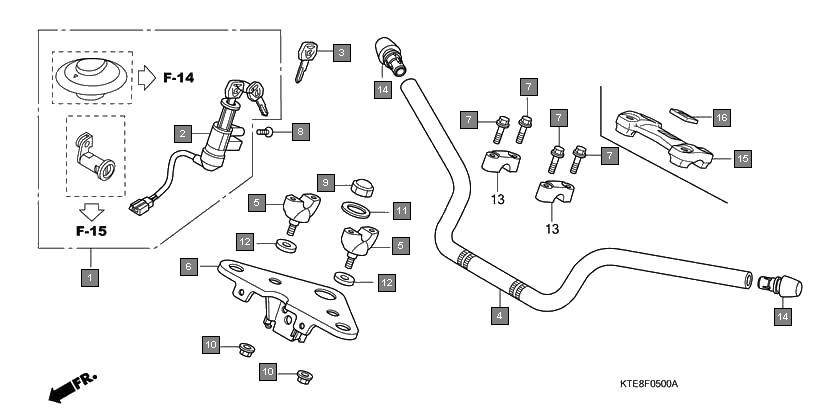

Motorcycles CB Shine CBF125MCA Frame Handle pipe/top bridge(1)
Ref.No. Part No. Description Oty
1 35010KTE910 KEY SET 1
2 35100KTE910 SWITCH ASSY., COMBINATION & LOCK 1
3 35121KSP910 KEY, BLANK 1
4 53100KTEA01 PIPE, STEERING HANDLE 1
5 53130KTE910 HOLDER, HANDLE UNDER 2
6 53230KTE910 BRIDGE COMP., FORK TOP 1
7 90117383000 BOLT, FLANGE, 6X28 4
8 90164KPL900 SCREW, U-LOCK FLAT, 6X12 2
9 90304KSP900 NUT, STEERING STEM 1
10 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 2
11 90503KSP900 WASHER, STEERING STEM 1
12 90521427770 WASHER, 10.3MM 2
13 53105KRC900 END, STEERING HANDLE 2
14 53131KWF900ZA HOLDER, HANDLE UPPER *NH303M* MAT AXIS GRAY METALLIC 1
15 53138KTEA00 EMBLEM, HANDLE UPPER HOLDER 1
