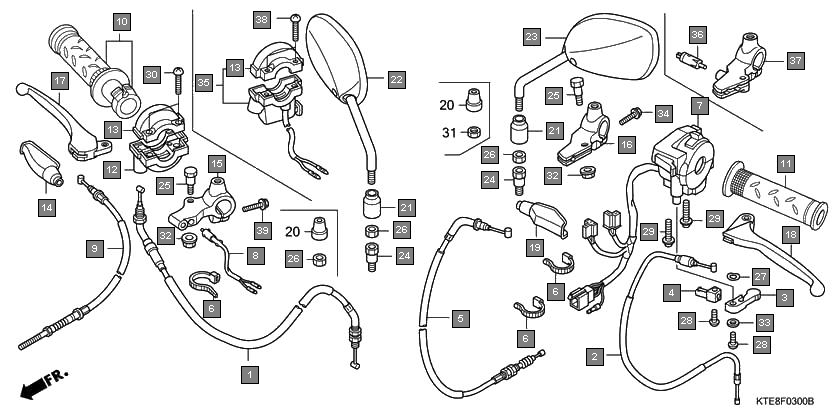

Motorcycles CB Shine CBF125MCA Frame Handle lever/switch/cable(1)
Ref.No. Part No. Description Oty
1 17910KTEA00 CABLE COMP., THROTTLE 1
2 17950KTE910 CABLE COMP., CHOKE 1
3 17961KTE911 LEVER, CHOKE 1
4 17962KTE910 STOPPER, CABLE 1
5 22870KTE910 CABLE COMP., CLUTCH 1
6 32161KSP920 BAND B1, WIRE 3
7 32161KSP920 BAND B1, WIRE 2
8 35200KTE911 SWITCH ASSY., WINKER 1
9 35200KTE930 SWITCH ASSY., WINKER 1
10 35340KCC900 SWITCH ASSY., FR. STOP 1
11 45450KTE910 CABLE COMP., FR. BRAKE 1
12 53140KSPA70 GRIP COMP., THROTTLE 1
13 53166KSPA70 GRIP, L. HANDLE 1
14 53167GE4000 HOUSING, THROTTLE 1
15 53168KTE910 HOUSING, UNDER THROTTLE 1
16 53168166000 HOUSING, THROTTLE 1
17 53171KCC900 COVER, R. HANDLE LEVER 1
18 53171KTEA00 BRACKET, R. HANDLE LEVER 1
19 53172KTE910 BRACKET, L. HANDLE LEVER 1
20 53175KTEA00 LEVER COMP., R. HANDLE 1
21 53178KTEA00 LEVER COMP., L. HANDLE 1
22 53179KTC900 COVER, L. HANDLE LEVER 1
23 88114198D10 CAP, LOCK NUT 2
24 88210KWS902 MIRROR COMP., R. 1
25 88220KWS902 MIRROR COMP., L. 1
26 90103KTE920 BOLT, ADAPTER, 10MM 2
27 90114428870 BOLT, HANDLE LEVER PIVOT 2
28 90114428870 BOLT, HANDLE LEVER PIVOT 1
29 90201MW3620 NUT, HEX., 10MM (LEFT HAND THREAD) 2
30 90442147000 WASHER, WAVE 1
31 93500050100A SCREW, PAN, 5X10 2
32 93500050200G SCREW, PAN, 5X20 2
33 93500050220G SCREW, PAN, 5X22 2
34 9405006000 NUT, FLANGE, 6MM 1
35 9405006000 NUT, FLANGE, 6MM 2
36 9410305000 WASHER, PLAIN, 5MM 1
37 960010602507 BOLT, FLANGE, 6X25 1
38 35150KTE930 SWITCH ASSY., STARTER 1
39 35330KEJ900 SWITCH COMP., FR. LEVER 1
40 53172KTE930 BRACKET, L. HANDLE LEVER 1
