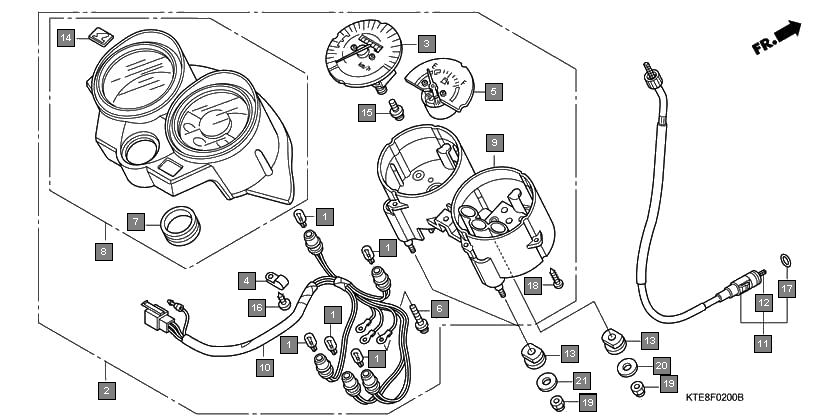

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 34908KTF641 | BULB, WEDGE BASE(T10 12V 1.7W) | 5 |
2 | 37100KTE911 | METER ASSY., COMBINATION | 1 |
3 | 37210KTE911 | SPEEDOMETER COMP. | 1 |
4 | 37215KS3901 | CLAMP | 1 |
5 | 37300KTE911 | METER COMP., FUEL | 1 |
6 | 37305KE5008 | SCREW-WASHER, 3X22 | 3 |
7 | 37312KTE910 | GROMMET, COMBINATION SWITCH | 1 |
8 | 37610KTE911 | CASE ASSY., UPPER | 1 |
9 | 37612KTE911 | CASE ASSY., UNDER | 1 |
10 | 37619KTE911 | SOCKET COMP. | 1 |
11 | 44830KTE911 | CABLE COMP., SPEEDOMETER | 1 |
12 | 44831KTE910 | CABLE, INNER | 1 |
13 | 80101443000 | RUBBER, RR. FENDER CUSHION | 3 |
14 | 86150KPG901 | EMBLEM, PRODUCT(MARUI) | 1 |
15 | 90035166008 | SCREW-WASHER, SPECIAL, 4X10 | 2 |
16 | 90109MZ5008 | SCREW, TAPPING, 4X14 | 1 |
17 | 91352671003 | O-RING, 8.5X1.5(ARAI) | 1 |
18 | 91352671004 | O-RING, 8.5X1.5(NOK) | 1 |
19 | 9390322420 | SCREW, TAPPING, 3X16 | 8 |
20 | 94021060700S | NUT, CAP, 6MM | 3 |
21 | 94001060700S | NUT, HEX., 6MM | 3 |
22 | 9410306700 | WASHER, PLAIN, 6MM | 1 |
23 | 9410306700 | WASHER, PLAIN, 6MM | 2 |
24 | 90616KTE910 | WASHER, PLAIN, 6X16 | 2 |
