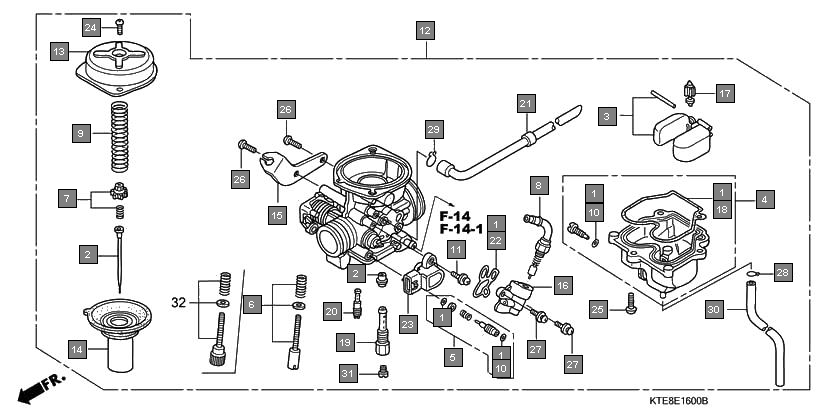

Motorcycles CB Shine CBF125MCA Engine Carburetor
Ref.No. Part No. Description Oty
1 16010KSP911 GASKET SET 1
2 16012KTE911 NEEDLE SET, JET 1
3 16013KRC921 FLOAT SET 1
4 16015KSP911 CHAMBER SET, FLOAT 1
5 16016KTE911 SCREW SET A 1
6 16028KTE911 SCREW SET B 1
7 16037KPP861 PLATE SET, VALVE 1
8 16046KVC901 VALVE SET, STARTER 1
9 16050KTE911 SPRING, COMPRESSION COIL 1
10 16075KRP981 O-RING 2
11 16080KTN901 SCREW-WASHER, TORX(5X16) 1
12 16100KTEA01 CARBURETOR ASSY.(AVK3BU A) 1
13 16107KGF911 TOP 1
14 16111KTE911 PISTON COMP., VACUUM 1
15 16119KTE911 STAY, WIRE 1
16 16140KTE911 BODY COMP., BYSTARTER 1
17 16155KFR701 VALVE COMP., FLOAT 1
18 16163KRP981 GASKET, FLOAT CHAMBER 1
19 16165KSP911 HOLDER, NEEDLE JET 1
20 16180KGF911 JET, SLOW, #38 1
21 16198KTE911 TUBE COMP., AIR VENT 1
22 16423KGH901 GASKET, BYSTARTER 1
23 37890KTN901 SENSOR ASSY., THROTTLE 1
24 93500040081H SCREW, PAN, 4X8 2
25 93500040120H SCREW, PAN, 4X12 3
26 93500050121H SCREW, PAN, 5X12 2
27 938920501218 SCREW-WASHER, 5X12 2
28 9500202089 CLIP, TUBE(B8) 1
29 9500202109 CLIP, TUBE(B10) 1
30 950054544050 TUBE, 4.5X440(95005-45001-50M) 1
31 99101KPB1020 JET, MAIN, #102 1
