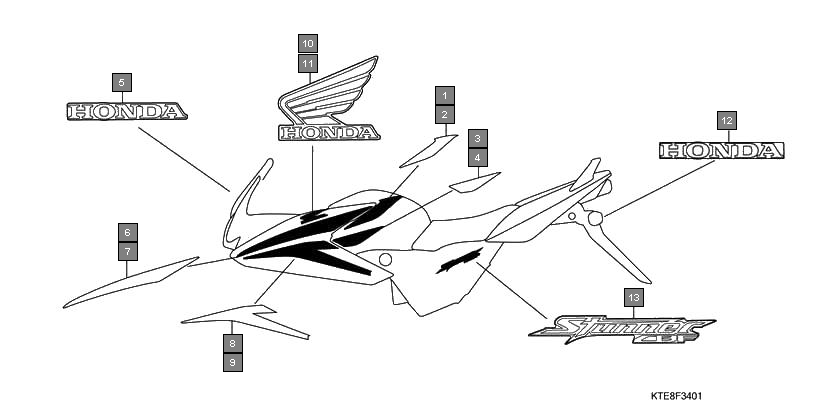

Motorcycles CBF Stunner CBF1259 Frame Mark(cbf1259/m9-mid,m2id)
Ref.No. Part No. Description Oty
1 17507KWF930ZA STRIPE A, R. FUEL TANK *TYPE1* 1
2 17507KWF930ZB STRIPE A, R. FUEL TANK *TYPE2* 1
3 17508KWF930ZA STRIPE A, L. FUEL TANK *TYPE1* 1
4 17508KWF930ZB STRIPE A, L. FUEL TANK *TYPE2* 1
5 17515KWF930ZA STRIPE B, R. FUEL TANK *TYPE1* 1
6 17515KWF930ZB STRIPE B, R. FUEL TANK *TYPE2* 1
7 17516KWF930ZA STRIPE B, L. FUEL TANK *TYPE1* 1
8 17516KWF930ZB STRIPE B, L. FUEL TANK *TYPE2* 1
9 64108KWF900ZA MARK, WINDSCREEN *TYPE1* 1
10 64206KWF930ZA STRIPE A, R. FR. COWL *TYPE1* 1
11 64206KWF930ZB STRIPE A, R. FR. COWL *TYPE2* 1
12 64207KWF930ZA STRIPE A, L. FR. COWL *TYPE1* 1
13 64207KWF930ZB STRIPE A, L. FR. COWL *TYPE2* 1
14 64208KWF930ZA STRIPE B, R. FR. COWL *TYPE1* 1
15 64208KWF930ZB STRIPE B, R. FR. COWL *TYPE2* 1
16 64208KWF930ZC STRIPE B, R. FR. COWL *TYPE3* 1
17 64208KWF930ZD STRIPE B, R. FR. COWL *TYPE4* 1
18 64209KWF930ZA STRIPE B, L. FR. COWL *TYPE1* 1
19 64209KWF930ZB STRIPE B, L. FR. COWL *TYPE2* 1
20 64209KWF930ZC STRIPE B, L. FR. COWL *TYPE3* 1
21 64209KWF930ZD STRIPE B, L. FR. COWL *TYPE4* 1
22 64214KWF900ZA MARK, R. WING(100MM) *TYPE1* 1
23 64214KWF900ZB MARK, R. WING(100MM) *TYPE2* 1
24 64214KWF900ZC MARK, R. WING(100MM) *TYPE3* 1
25 64214KWF900ZD MARK, R. WING(100MM) *TYPE4* 1
26 64215KWF900ZA MARK, L. WING(100MM) *TYPE1* 1
27 64215KWF900ZB MARK, L. WING(100MM) *TYPE2* 1
28 64215KWF900ZC MARK, L. WING(100MM) *TYPE3* 1
29 64215KWF900ZD MARK, L. WING(100MM) *TYPE4* 1
30 80121KWF900ZA MARK, RR. FENDER *TYPE1* 1
31 83710KWF900ZA MARK, SIDE COVER *TYPE1* 2
