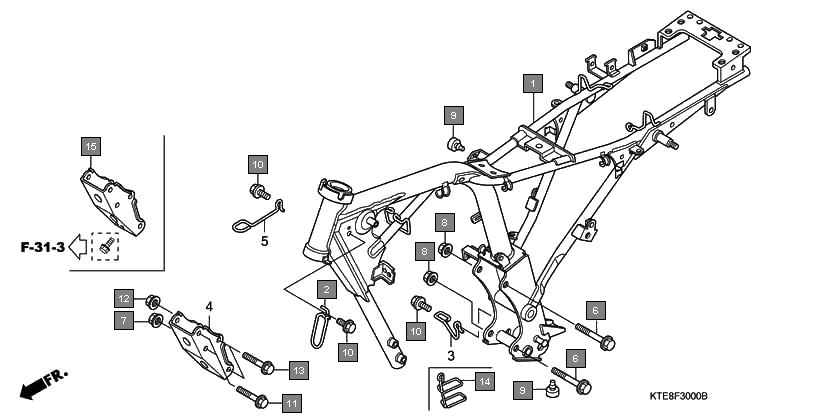

Motorcycles CBF Stunner CBF1259 Frame Frame body
Ref.No. Part No. Description Oty
1 50100KWF960 BODY COMP., FRAME 1
2 50100KWF900 BODY COMP., FRAME 1
3 50187KTE910 GUIDE, MAIN HARNESS 1
4 50351KWF900 PLATE, FR. ENGINE HANGER 1
5 90019399010 BOLT, FLANGE, 10X110 2
6 9405010000 NUT, FLANGE, 10MM 2
7 9501162000 RUBBER B, STAND STOPPER 2
8 957010601200 BOLT, FLANGE, 6X12 2
9 958011008500 BOLT, FLANGE, 10X85 2
10 9405008000 NUT, FLANGE, 8MM 2
11 958010808500 BOLT, FLANGE, 8X85 2
12 50296KWF900 GUIDE, DRAIN HOSE 1
