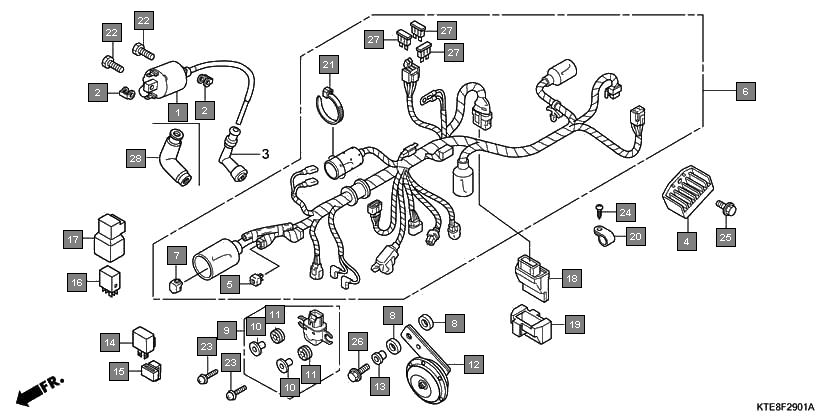

Motorcycles CBF Stunner CBF1259 Frame Wire harness(throttle body)
Ref.No. Part No. Description Oty
1 30510KTYD31 COIL COMP., IGNITION 1
2 30520ML7000 SPACER, IGNITION COIL 2
3 30700KWF950 CAP ASSY., NOISE SUPPRESSOR 1
4 31600KSP861 RECTIFIER COMP., REGULATOR 1
5 31700124008 RECTIFIER ASSY., SILICON(SHINDENGEN) 1
6 32100KWF960 HARNESS, WIRE 1
7 32606GEV761 CAP, DUMMY(4P)(RED) 1
8 33714KL3620 RUBBER, TAILLIGHT BRACKET 2
9 35160KWF951 SENSOR ASSY., BANK ANGLE 1
10 35162MFAD01 COLLAR 2
11 35163MBZC50 GROMMET 2
12 38110KTE910 HORN COMP.(HIGH) 1
13 38117KFE701 COLLAR, HORN SETTING 1
14 38301KPL901 RELAY COMP., WINKER 1
15 38306GE7000 SUSPENSION, WINKER RELAY 1
16 38502KSP910 RELAY COMP., POWER (MICRO ISO 5P) 1
17 38506KSP910 SUSPENSION, POWER RELAY 1
18 38770KWF961 PGM-FI UNIT 1
19 38771KTW900 CUSHION, PGM-FI UNIT 1
20 90628750000 CLIP(14MM) 1
21 90651KV6003 BAND, WIRE, 165MM(BLACK) 1
22 92101060204J BOLT, HEX., 6X20 2
23 938910402207 SCREW-WASHER, 4X22 2
24 9390324320 SCREW, TAPPING, 4X12 1
25 957010601200 BOLT, FLANGE, 6X12 1
26 957010602008 BOLT, FLANGE, 6X20 1
27 9820041000 FUSE, MINI(10A) 3
