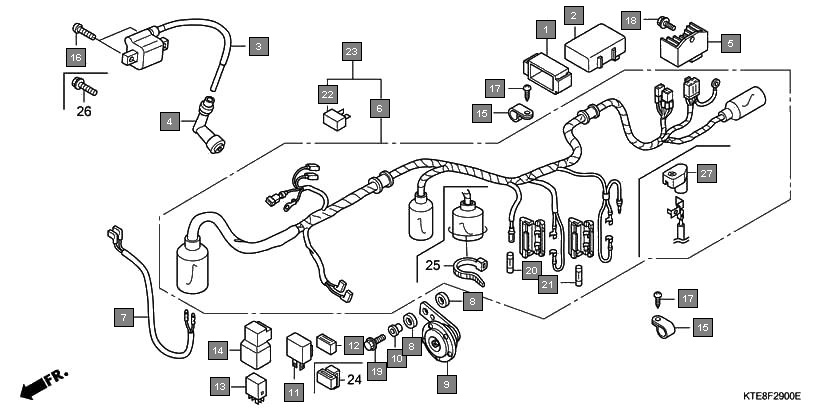

Motorcycles CBF Stunner CBF1259 Frame Wire harness(carburetor)
Ref.No. Part No. Description Oty
1 30401KTE910 CUSHION, C.D.I. UNIT 1
2 30410KWF901 C.D.I. UNIT 1
3 30500KTE910 COIL COMP., IGNITION 1
4 30700KWF900 CAP ASSY., NOISE SUPPRESSOR 1
5 31600KSP861 RECTIFIER COMP., REGULATOR 1
6 32100KWF900 HARNESS, WIRE 1
7 33714KL3620 RUBBER, TAILLIGHT BRACKET 2
8 38110KTE910 HORN COMP.(HIGH) 1
9 38117KFE701 COLLAR, HORN SETTING 1
10 38301KPL901 RELAY COMP., WINKER 1
11 38502KSP910 RELAY COMP., POWER (MICRO ISO 5P) 1
12 38506KSP910 SUSPENSION, POWER RELAY 1
13 90628750000 CLIP(14MM) 2
14 9390324320 SCREW, TAPPING, 4X12 2
15 957010601200 BOLT, FLANGE, 6X12 1
16 957010602008 BOLT, FLANGE, 6X20 1
17 9820011000 FUSE A(10A) 2
18 9820011500 FUSE(15A) 2
19 31700124008 RECTIFIER ASSY., SILICON(SHINDENGEN) 1
20 32100KWF920 HARNESS, WIRE 1
21 38306GE7000 SUSPENSION, WINKER RELAY 1
22 90651KV6003 BAND, WIRE, 165MM(BLACK) 1
23 960010602000 BOLT, FLANGE, 6X20 2
