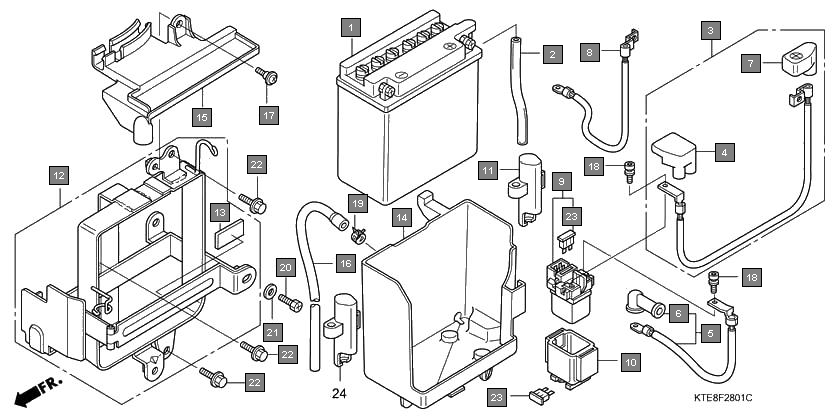

Motorcycles CBF Stunner CBF1259 Frame Battery(carburetor)(cbf125m7/9/m9/mc9)
Ref.No. Part No. Description Oty
1 31500KRP902 BATTERY(AB5L-B) 1
2 31502KSP920 TUBE, BATTERY BREATHER 1
3 32401KTE930 CABLE, STARTER MAGNETIC BATTERY 1
4 32406KAZ000 COVER, STARTER MAGNETIC TERMINAL 1
5 32410KTE930 CABLE, STARTER MOTOR 1
6 32411253000 COVER, STARTER MOTOR TERMINAL 1
7 32414KTC920 COVER, BATTERY TERMINAL 1
8 32601KTE930 CABLE, BATTERY EARTH 1
9 35850KEB620 SWITCH ASSY., STARTER MAGNETIC 1
10 35856KTE930 RUBBER, SHOCK 1
11 38201KTE930 HOLDER, FUSE 1
12 50380KWF900 BOX COMP., BATTERY 1
13 50380KWF920 BOX COMP., BATTERY 1
14 50383GB6300 RUBBER, BATTERY 1
15 50385KTE930 TRAY, BATTERY 1
16 50386KTE930 COVER, BATTERY 1
17 50388KTE930 TUBE, BATTERY TRAY 1
18 90101GE0000 SCREW, HINGE PATCH 1
19 90111MR5000 BOLT, SOCKET, 5X9 2
20 90602KPL900 CLAMP, TUBE(D12.0) 1
21 92301060120A BOLT, RECESSED, 6X12 1
22 9410106800 WASHER, PLAIN, 6MM 1
23 957010601000 BOLT, FLANGE, 6X10 3
24 9820032000 FUSE, BLADE(20A) 2
