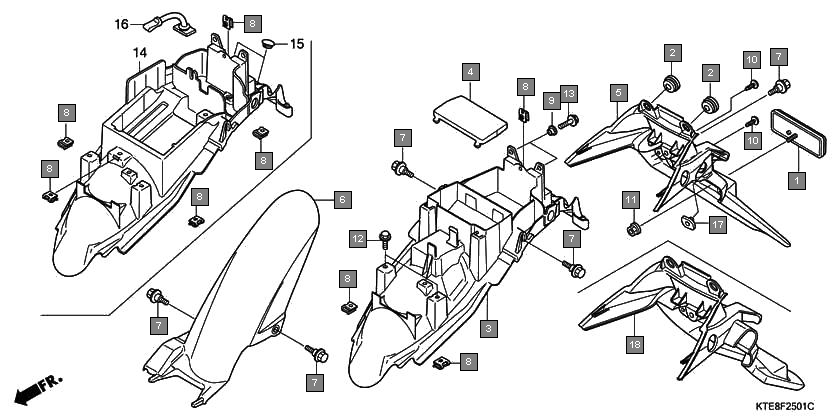

Motorcycles CBF Stunner CBF1259 Frame Rear fender(2)
Ref.No. Part No. Description Oty
1 33741KPL901 REFLECTOR, REFLEX 1
2 61304KRY900 RUBBER, HEADLIGHT CASE MOUNTING 2
3 80100KWF900 FENDER, RR. 1
4 80110KWF900 COVER, TOOL BOX 1
5 80120KWF900ZA COVER SET, RR. FENDER(WL) *TYPE1* 1
6 80250KWF900 FENDER, HUGGER 1
7 90111KWF900 BOLT, FLANGE, 6MM 5
8 90320747000 NUT, SPRING, 6MM 3
9 90320747000 NUT, SPRING, 6MM 5
10 90522KSP860 COLLAR, CHAIN CASE SETTING 2
11 9390335280 SCREW, TAPPING, 5X12 2
12 9405005000 NUT, FLANGE, 5MM 1
13 957010601600 BOLT, FLANGE, 6X16 2
14 957010602000 BOLT, FLANGE, 6X20 2
15 80100KWF950 FENDER, RR. 1
16 80103KWF960 PLUG, RR. FENDER 2
17 83606KWF950 BAND, TOOL 1
18 90311KTE910 NUT, RR. FENDER 2
