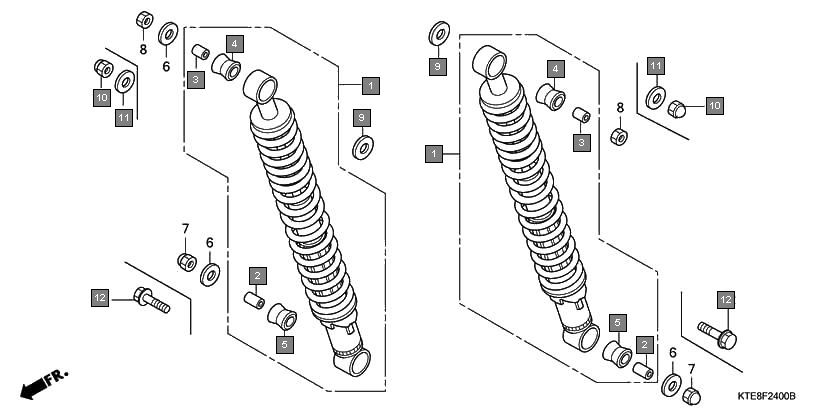

Motorcycles CBF Stunner CBF1259 Frame Rear cushion
Ref.No. Part No. Description Oty
1 52400KWF961 CUSHION ASSY., RR. 2
2 52400KWF901 CUSHION ASSY., RR. 2
3 52486KAG901 COLLAR, RUBBER BUSH 2
4 52486KTN701 COLLAR, RUBBER BUSH 2
5 52489399601 BUSH, UPPER RUBBER 2
6 52495098000 BUSH, RUBBER 2
7 9410112000 WASHER, PLAIN, 12MM 2
8 94021100200S NUT, CAP, 10MM 2
9 90551KTE910 WASHER, SPECIAL, 10MM 2
10 958011003500 BOLT, FLANGE, 10X35 2
