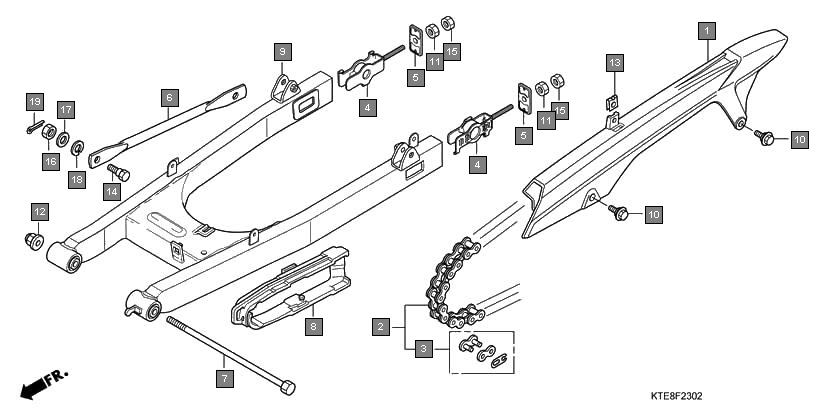

Motorcycles CBF Stunner CBF1259 Frame Swingarm(3)
Ref.No. Part No. Description Oty
1 40510KWF950 CASE, DRIVE CHAIN 1
2 40530KWF961 CHAIN, DRIVE(LGB R428HBS-118L) 1
3 40531KWF961 JOINT, DRIVE CHAIN(LGB) 1
4 40544KWF900 ADJUSTER COMP., R. CHAIN 2
5 40546KWF950 CAP, SWINGARM END 2
6 43431KWF900 ARM, RR. BRAKE STOPPER 1
7 52101KWF900 BOLT, SWINGARM PIVOT 1
8 52170KWF900 SLIDER, CHAIN 1
9 52200KWF950 SWINGARM SUB ASSY., RR. 1
10 90111KWF900 BOLT, FLANGE, 6MM 2
11 90302KBP900 NUT, SPECIAL, 6MM 2
12 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
13 90320747000 NUT, SPRING, 6MM 1
14 9281210000 BOLT A, STOPPER ARM 1
15 94001060000S NUT, HEX., 6MM 2
16 94001080000S NUT, HEX., 8MM 1
17 9410108000 WASHER, PLAIN, 8MM 1
18 9411110000 WASHER, SPRING, 10MM 1
19 9420120150 PIN, SPLIT, 2.0X15 1
