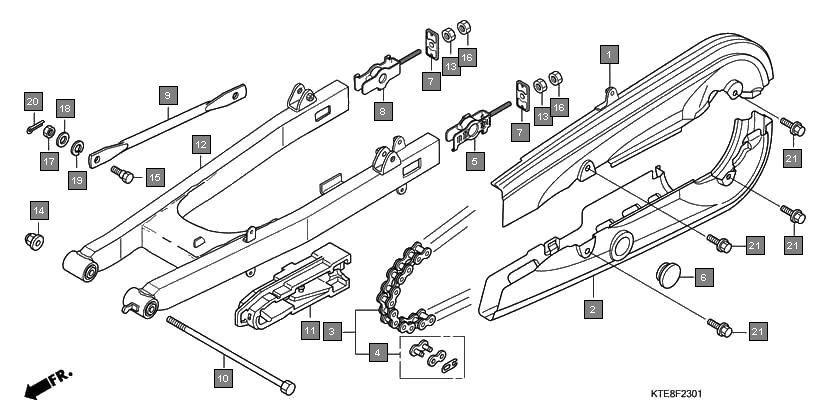

Motorcycles CBF Stunner CBF1259 Frame Swingarm(2)
Ref.No. Part No. Description Oty
1 40510KWF900ZA CASE, UPPER HALF DRIVE CHAIN *NH303M* MAT AXIS GRAY METALLIC 1
2 40520KWF900ZA CASE, UNDER HALF DRIVE CHAIN *NH303M* MAT AXIS GRAY METALLIC 1
3 40530KWF901 CHAIN, DRIVE(RK420SBZ1-118RJ) 1
4 40530KWF902 CHAIN, DRIVE(LGB R420BS-118L) 1
5 40531KST944 JOINT, DRIVE CHAIN(RK) 1
6 40531KTE912 JOINT, DRIVE CHAIN(LGB) 1
7 40543KWF900 ADJUSTER COMP., L. CHAIN 1
8 40545001000 CAP, CHAIN CASE PEEP HOLE 1
9 40546KWF900 CAP, SWINGARM END 2
10 40544KWF900 ADJUSTER COMP., R. CHAIN 1
11 43431KWF900 ARM, RR. BRAKE STOPPER 1
12 52101KWF900 BOLT, SWINGARM PIVOT 1
13 52170KWF900 SLIDER, CHAIN 1
14 52200KWF900 SWINGARM SUB ASSY., RR. 1
15 90302KBP900 NUT, SPECIAL, 6MM 2
16 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
17 9281210000 BOLT A, STOPPER ARM 1
18 94001060000S NUT, HEX., 6MM 2
19 94001080000S NUT, HEX., 8MM 1
20 9410108000 WASHER, PLAIN, 8MM 1
21 9411110000 WASHER, SPRING, 10MM 1
22 9420120150 PIN, SPLIT, 2.0X15 1
23 957010601007 BOLT, FLANGE, 6X10 4
