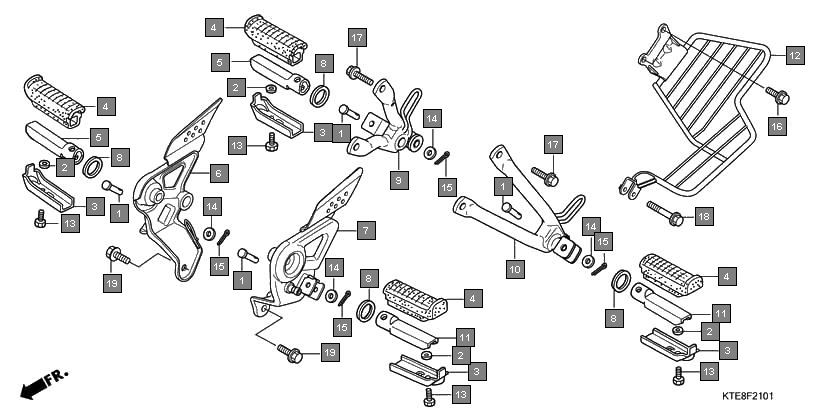

Motorcycles CBF Stunner CBF1259 Frame Step(2)
Ref.No. Part No. Description Oty
1 50602KSP900 PIN, MAIN STEP BAR JOINT 4
2 50618KE8000 COLLAR, 6.5X11X3 4
3 50619KFN850 PLATE, STEP LOWER 4
4 50661KFN850 RUBBER, MAIN STEP 4
5 50701KSP900 BAR, R. MAIN STEP 2
6 50701KWF900 HOLDER, R. STEP 1
7 50702KWF900 HOLDER, L. STEP 1
8 50715KSP910 PLATE, PILLION STEP SIDE 4
9 50715KWF900 BRACKET COMP., R. PILLION STEP 1
10 50716KWF900 BRACKET COMP., L. PILLION STEP 1
11 50801KSP900 BAR, L. MAIN STEP 2
12 51103KWF900 GUARD, SARI 1
13 51103KWF960 GUARD, SARI 1
14 92101060120G BOLT, HEX., 6X12 4
15 9410208000 WASHER, PLAIN, 8MM 4
16 9420120150 PIN, SPLIT, 2.0X15 4
17 957010801600 BOLT, FLANGE, 8X16 2
18 957010801807 BOLT, FLANGE, 8X18 4
19 957010803500 BOLT, FLANGE, 8X35 1
20 957011001600 BOLT, FLANGE, 10X16 2
21 957011001608 BOLT, FLANGE, 10X16 2
