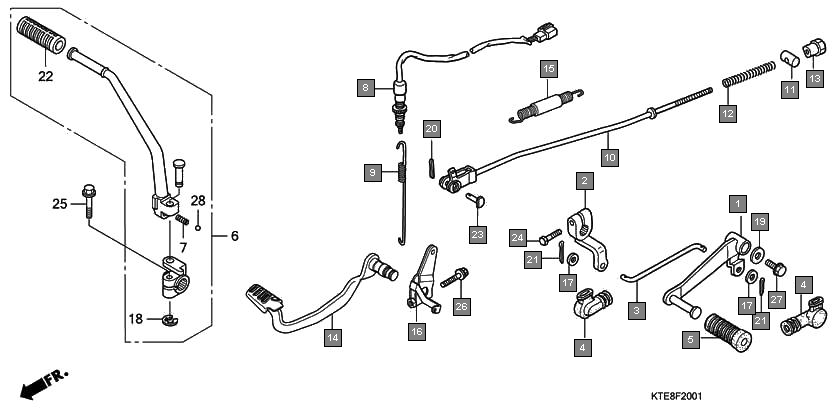

Motorcycles CBF Stunner CBF1259 Frame Pedal/kick starter arm(2)
Ref.No. Part No. Description Oty
1 24701KWF900 PEDAL, GEAR CHANGE 1
2 24701KWF950 PEDAL, GEAR CHANGE 1
3 24711KWF900 ARM, GEAR CHANGE 1
4 24711KWF950 ARM, GEAR CHANGE 1
5 24720KWF900 ROD, TIE 1
6 24720KWF950 ROD, TIE 1
7 24721GS3000 COVER, CHANGE PEDAL 2
8 24781KR3770 RUBBER, GEAR CHANGE PEDAL 1
9 28300KWF900 ARM ASSY., KICK STARTER 1
10 28333KANT40 SPRING, KICK STARTER STOPPER 1
11 35350KWF901 SWITCH ASSY., RR. STOP 1
12 35350KWF961 SWITCH ASSY., RR. STOP 1
13 35357KWF900 SPRING, STOP SWITCH 1
14 43451KWF900 ROD COMP., RR. BRAKE 1
15 43455KSP900 JOINT, BRAKE ARM 1
16 43456KSP900 SPRING, BRAKE ROD 1
17 43459KSP900 NUT, BRAKE ROD ADJUSTING 1
18 46500KWF900 PEDAL COMP., BRAKE 1
19 46500KWF950 PEDAL, BRAKE 1
20 46513KWF900 SPRING SET, BRAKE PEDAL 1
21 46515KWF900 ARM COMP., MIDDLE 1
22 46515KWF950 ARM COMP., MIDDLE 1
23 90502155000 WASHER, PLAIN, 7MM 2
24 90601473003 E-RING, 8MM 1
25 9410306000 WASHER, PLAIN, 6MM 1
26 9410306200 WASHER, PLAIN, 6MM 1
27 9420120120 PIN, SPLIT, 2.0X12 1
28 9420120150 PIN, SPLIT, 2.0X15 2
29 9501151000 RUBBER A, KICK STARTER 1
30 9501553000 PIN C, JOINT 1
31 957010602000 BOLT, FLANGE, 6X20 1
32 957010602002 BOLT, FLANGE, 6X20 1
33 957010802500 BOLT, FLANGE, 8X25 1
34 957010804000 BOLT, FLANGE, 8X40 1
35 960010601400 BOLT, FLANGE, 6X14 1
36 960010601402 BOLT, FLANGE, 6X14 1
37 9621108000 BALL, STEEL, #8(1/4) 1
