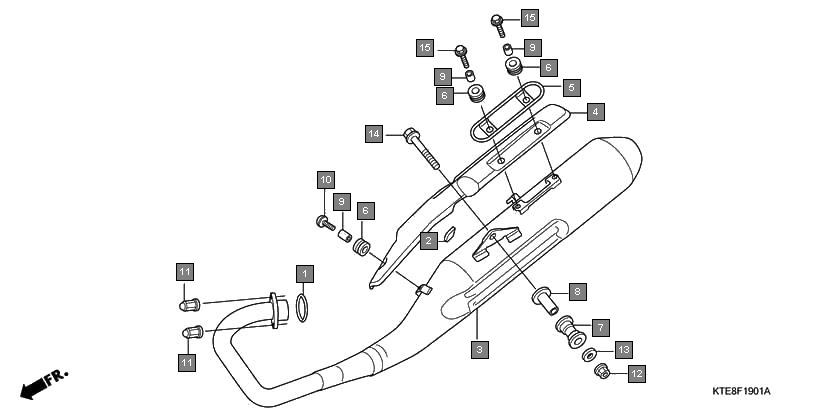

Motorcycles CBF Stunner CBF1259 Frame Exhaust muffler(2)
Ref.No. Part No. Description Oty
1 18291MN5650 GASKET, EX. PIPE 1
2 18293KPK900 RUBBER, PROTECTOR PACKING 1
3 18300KWF900 MUFFLER COMP., EX. 1
4 18300KWF960 MUFFLER COMP., EX. 1
5 18311KWF900 COVER, MUFFLER 1
6 18311KWF960 COVER, MUFFLER 1
7 18317KWF960 PROTECTOR, MUFFLER 1
8 18317KVN900 PROTECTOR, MUFFLER 1
9 18345MBT610 RUBBER, PROTECTOR MOUNTING 3
10 18421438670 RUBBER, MUFFLER MOUNTING 1
11 18442KRC900 COLLAR, MUFFLER MOUNTING 1
12 33619459840 COLLAR, WINKER STAY 3
13 90107KST940 SCREW, MUFFLER PROTECTOR 1
14 90305KSP900 NUT, EXHAUST PIPE, 8MM 2
15 9405010000 NUT, FLANGE, 10MM 1
16 9410310000 WASHER, PLAIN, 10MM 1
17 958011005500 BOLT, FLANGE, 10X55 1
18 90103KAB000 BOLT, FLANGE, 10X57 1
19 960010601602 BOLT, FLANGE, 6X16 2
