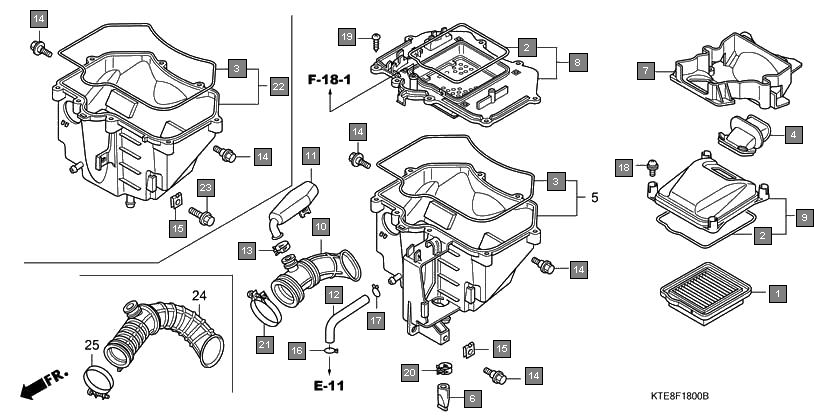

Motorcycles CBF Stunner CBF1259 Frame Air cleaner
Ref.No. Part No. Description Oty
1 17211KTE910 ELEMENT COMP., AIR CLEANER 1
2 17211KWF950 ELEMENT COMP., AIR CLEANER 1
3 17214KTE910 SEAL B, AIR CLEANER 2
4 17215KSP900 SEAL A, AIR CLEANER 1
5 17219KTE910 DUCT, AIR CLEANER 1
6 17219KWF950 DUCT, AIR CLEANER 1
7 17227KTE910 TUBE, VINYL, 11X15X40 1
8 17234KWF900 COVER, AIR CLEANER DUCT 1
9 17235KTE910 HOLDER SUB ASSY., AIR CLEANER 1
10 17235KWF950 HOLDER SUB ASSY., AIR CLEANER 1
11 17245KTE910 COVER SUB ASSY., AIR CLEANER 1
12 17245KWF950 COVER SUB ASSY., AIR CLEANER 1
13 17253KWF900 TUBE, AIR CLEANER CONNECTING 1
14 17311KTE910 RESONATOR 1
15 17311KTE911 RESONATOR 1
16 17371KTE910 TUBE, BREATHER 1
17 19509GE2003 CLAMP, TUBE(D19) 1
18 90111KWF900 BOLT, FLANGE, 6MM 2
19 90320747000 NUT, SPRING, 6MM 1
20 90651KM9000 CLIP, TUBE(B14) 1
21 17316611000 CLIP, BREATHER TUBE 1
22 90651MK3780 CLIP, TUBE(B12.5) 1
23 938930501600 SCREW-WASHER, 5X16 4
24 9390325380 SCREW, TAPPING, 5X16 8
25 91406KFN850 CLAMP, TUBE(D14.5) 1
26 9501854251 BAND, AIR CLEANER CONNECTING TUBE(54) 1
27 17225KTE930 CASE SUB ASSY., AIR CLEANER 1
28 17225KWF950 CASE SUB ASSY., AIR CLEANER 1
29 957010601000 BOLT, FLANGE, 6X10 1
30 17253KWF950 TUBE, AIR CLEANER CONNECTING 1
31 9501842250 BAND, AIR CLEANER CONNECTING TUBE(42) 1
