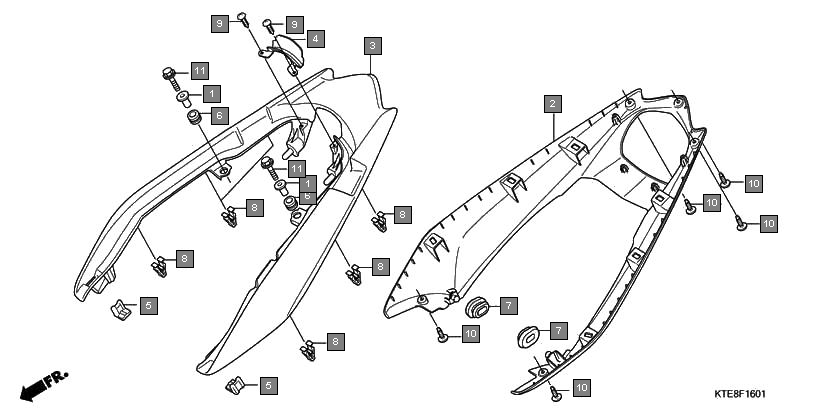

Motorcycles CBF Stunner CBF1259 Frame Rear cowl(2)
Ref.No. Part No. Description Oty
1 19052KV0000 COLLAR, RADIATOR MOUNTING 2
2 77210KWF900ZF COWL, RR. LOWER *NH1* BLACK 1
3 77210KWF900ZK COWL, RR. LOWER *NH194MU* HEAVY GRAY METALLIC-U 1
4 77230KWF900ZD COWL, RR. UPPER *NHB06M* SPACE SILVER METALLIC 1
5 77230KWF900ZC COWL, RR. UPPER *R321* SPORTS RED 1
6 77230KWF900ZG COWL, RR. UPPER *Y206P* PEARL SPORTS YELLOW 1
7 77230KWF900ZF COWL, RR. UPPER *R101CU* CANDY GLORY RED-U 1
8 77230KWF900ZA COWL, RR. UPPER *NH1* BLACK 1
9 77240KWF900ZB LID, TAILLIGHT *R321* SPORTS RED 1
10 77240KWF900ZF LID, TAILLIGHT *Y206P* PEARL SPORTS YELLOW 1
11 77240KWF900ZC LID, TAILLIGHT *NHB06M* SPACE SILVER METALLIC 1
12 77240KWF900ZE LID, TAILLIGHT *R101CU* CANDY GLORY RED-U 1
13 77240KWF900ZA LID, TAILLIGHT *NH1* BLACK 1
14 83502KCC900 GROMMET, SIDE COVER 2
15 83545KCJ690 RUBBER, SIDE COVER 2
16 83551GE2000 GROMMET, AIR CLEANER CASE 2
17 90666SDAA01 CLIP, SNAP FITTING(PO)(NATURAL) 6
18 9390324480 SCREW, TAPPING, 4X16 2
19 9391314280 SCREW, TAPPING, 4X12(PO) 5
20 9600106020 BOLT, FLANGE, 6X20 2
