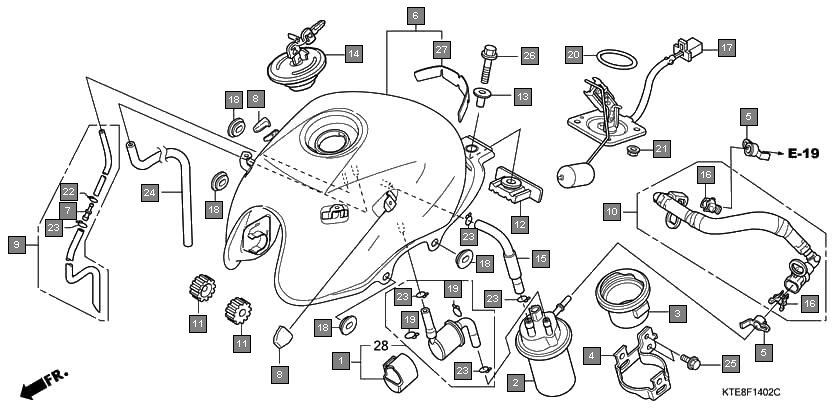

Motorcycles CBF Stunner CBF1259 Frame Fuel tank(3)
Ref.No. Part No. Description Oty
1 06170KWF960 STRAINER ASSY., FUEL 1
2 16700KWF961 PUMP ASSY., FUEL 1
3 16711KWF950 RUBBER, FUEL PUMP SHOCK 1
4 16712KWF960 STAY, FUEL PUMP 1
5 16718KTW900 DAMPER A, CONNECTOR 2
6 17500KWF960ZA TANK SET, FUEL *NH1* BLACK 1
7 17525KVE900 JOINT, TUBE 1
8 17529KVN900 RUBBER, SHROUD MOUNTING 2
9 17530KWF900 TUBE ASSY., BREATHER 1
10 17570KWF951 HOSE COMP., FUEL FEED 1
11 17611KFN850 CUSHION, FR. FUEL TANK 2
12 17613KTE910 RUBBER, FUEL TANK RR. 1
13 17614KR3000 COLLAR, FUEL TANK MOUNTING 1
14 17620KWF901 CAP COMP., FUEL FILLER 1
15 17682KWF950 TUBE, FUEL PUMP BREATHER 1
16 17711S0XA31 RETAINER(GREEN)(TOKAI) 2
17 37800KWF950 FUEL UNIT 1
18 83551300000 GROMMET, AIR CLEANER CASE 4
19 90652MB1000 CLIP, TUBE 2
20 91305443740 O-RING, 39.5X5 1
21 9405006000 NUT, FLANGE, 6MM 4
22 9500202080 CLIP, TUBE(B8) 1
23 9500202130 CLIP, TUBE(B12.5) 5
24 17683KWF900 TUBE, DRAIN 1
25 957010601200 BOLT, FLANGE, 6X12 2
26 957010802800 BOLT, FLANGE, 8X28 1
27 17506KWF900 FILM, TANK PROTECTOR 1
28 06160KWF305 FILTER KIT, FUEL 1
