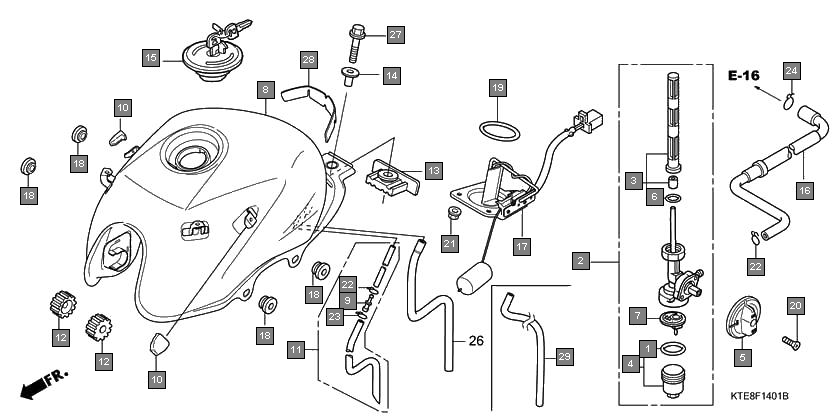

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 16173001004 | PACKING, FUEL STRAINER CUP | 1 |
| 2 | 16950KWF900 | COCK ASSY., FUEL | 1 |
| 3 | 16952KWF900 | SCREEN SET, FUEL STRAINER | 1 |
| 4 | 16953KWF900 | CUP SET, FUEL STRAINER | 1 |
| 5 | 16955KWF900 | LEVER, FUEL COCK | 1 |
| 6 | 16958397771 | O-RING, 9.0X1.3 | 1 |
| 7 | 16959471831 | FILTER, CUP | 1 |
| 8 | 17520KWF930ZJ | TANK SET, FUEL(WL)*Y206P* PEARL SPORTS YELLOW | 1 |
| 9 | 17520KWF930ZE | TANK SET, FUEL(WL) *NHB06M* SPACE SILVER METALLIC | 1 |
| 10 | 17520KWF930ZF | TANK SET, FUEL(WL) *NH1* BLACK | 1 |
| 11 | 17520KWF930ZG | TANK SET, FUEL(WL) *R321* SPORTS RED | 1 |
| 12 | 17525KVE900 | JOINT, TUBE | 1 |
| 13 | 17529KVN900 | RUBBER, SHROUD MOUNTING | 2 |
| 14 | 17530KWF900 | TUBE ASSY., BREATHER | 1 |
| 15 | 17611KFN850 | CUSHION, FR. FUEL TANK | 2 |
| 16 | 17613KTE910 | RUBBER, FUEL TANK RR. | 1 |
| 17 | 17614KR3000 | COLLAR, FUEL TANK MOUNTING | 1 |
| 18 | 17620KWF901 | CAP COMP., FUEL FILLER | 1 |
| 19 | 17681KWF900 | TUBE COMP., FUEL | 1 |
| 20 | 37800KWF900 | FUEL UNIT | 1 |
| 21 | 83551300000 | GROMMET, AIR CLEANER CASE | 4 |
| 22 | 91305443740 | O-RING, 39.5X5 | 1 |
| 23 | 93500040120G | SCREW, PAN, 4X12 | 1 |
| 24 | 9405006000 | NUT, FLANGE, 6MM | 4 |
| 25 | 9500202080 | CLIP, TUBE(B8) | 2 |
| 26 | 9500202130 | CLIP, TUBE(B12.5) | 1 |
| 27 | 9500250000 | CLIP, TUBE(C9) | 1 |
| 28 | 950058070020 | TUBE, 8X700(95005-80001-20M) | 1 |
| 29 | 957010802800 | BOLT, FLANGE, 8X28 | 1 |
| 30 | 17506KWF900 | FILM, TANK PROTECTOR | 1 |
| 31 | 17683KWF900 | TUBE, DRAIN | 1 |
