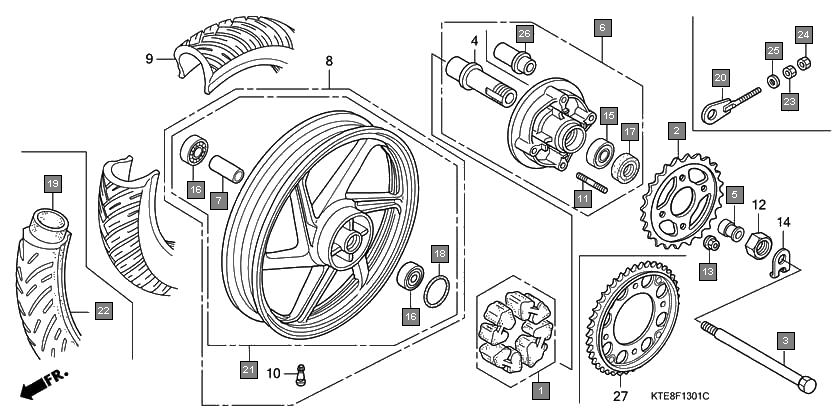

Motorcycles CBF Stunner CBF1259 Frame Rear wheel(2)
Ref.No. Part No. Description Oty
1 06410KTE910 DAMPER SET, WHEEL 1
2 41200KWF950 SPROCKET COMP., FINAL DRIVEN (42T) 1
3 41201KWF900 SPROCKET, FINAL DRIVEN(43T) 1
4 42301KWF950 AXLE, RR. WHEEL 1
5 42301KWF900 AXLE, RR. WHEEL 1
6 42303KWF900 SLEEVE, RR. WHEEL 1
7 42304KWF950 COLLAR, RR. AXLE SLEEVE 1
8 42304KWF900 COLLAR, RR. AXLE SLEEVE 1
9 42615KWF950 FLANGE SUB ASSY., FINAL DRIVEN 1
10 42615KWF900 FLANGE SUB ASSY., FINAL DRIVEN 1
11 42620KTE950 COLLAR, RR. AXLE DISTANCE 1
12 42650KWF900 WHEEL SUB ASSY., RR. 1
13 42711KWF930 TIRE, RR.(TVS) (100/90-17 M/C 55P) 1
14 42753KWF901 VALVE, RIM(TRITON) 1
15 90128KTE910 BOLT, STUD, 8X20 4
16 90307KTE910 NUT, RR. AXLE SLEEVE(17MM) 1
17 90309KTE911 NUT, FLANGE SPECIAL, 8MM 4
18 90558KTR900 WASHER, RR. AXLE 1
19 961506203010 BEARING, RADIAL BALL, 6203UU 1
20 91051KWF901 BEARING, RADIAL BALL, 6203UU(NSK) 1
21 961406301010 BEARING, RADIAL BALL, 6301U 2
22 91052KWF901 BEARING, RADIAL BALL, 6301U (NSK) 2
23 91251KGH901 DUST SEAL, 27X40X4.5(ARAI) 1
24 91304704000 O-RING, 42MM 1
25 42303KWF950 SLEEVE, RR. WHEEL 1
