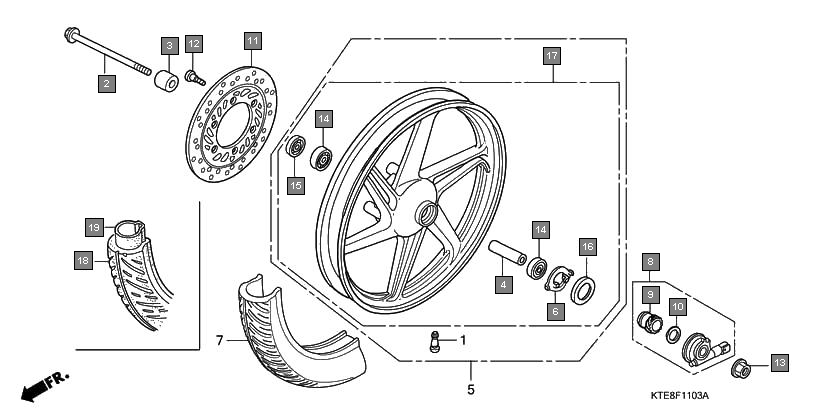

Motorcycles CBF Stunner CBF1259 Frame Front wheel(4)
Ref.No. Part No. Description Oty
1 42753KWF901 VALVE, RIM(TRITON) 1
2 44301KPL900 AXLE, FR. WHEEL 1
3 44311KSP900 COLLAR, FR. WHEEL SIDE 1
4 44620KSP900 COLLAR, FR. AXLE DISTANCE 1
5 44650KWF930 WHEEL SUB ASSY., FR. 1
6 44680410000 RETAINER, GEAR BOX 1
7 44711KWF930 TIRE, FR.(TVS) (80/100-17 M/C 46P) 1
8 44800KWF930ZA BOX ASSY., SPEEDOMETER GEAR *NH303M* MAT AXIS GRAY METALLIC 1
9 44804KWF931 GEAR, SPEEDOMETER 1
10 44809KPL900 WASHER, SPEEDOMETER GEAR 1
11 45251KVE901 DISK, FR. BRAKE 1
12 90105KSP870 BOLT, DISK, 8X24 6
13 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
14 90306KST942 NUT, FLANGE, 12MM (LEO FASTENERS) 1
15 961506301010 BEARING, RADIAL BALL, 6301UU 2
16 91053KWF931 BEARING, RADIAL BALL, 6301UU (NSK) 2
17 91251KPH901 DUST SEAL, 21X37X7(ARAI) 1
18 91258410013 DUST SEAL, 40X50X5(ARAI) 1
