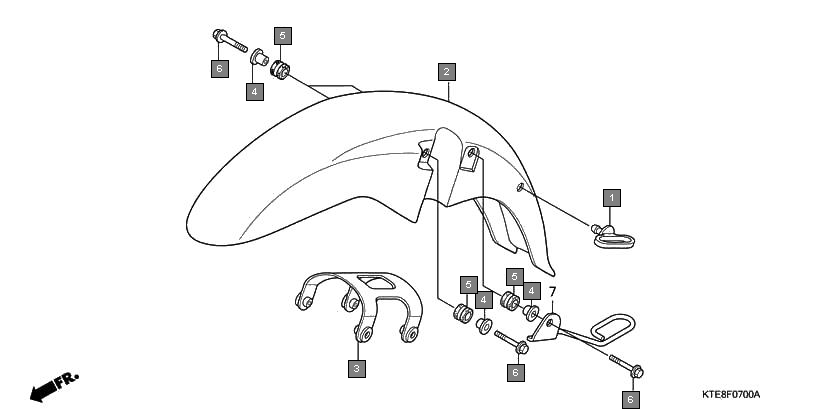

Motorcycles CBF Stunner CBF1259 Frame Front fender
Ref.No. Part No. Description Oty
1 61100KWF900ZG FENDER, FR. *R321* SPORTS RED 1
2 61100KWF900ZL FENDER, FR. *Y206P* PEARL SPORTS YELLOW 1
3 61100KWF900ZH FENDER, FR. *NHB06M* SPACE SILVER METALLIC 1
4 61100KWF900ZK FENDER, FR. *R101CU* CANDY GLORY RED-U 1
5 61100KWF900ZF FENDER, FR. *NH1* BLACK 1
6 61102KWF900 STAY, FR. FENDER 1
7 61102KWF950 STAY, FR. FENDER 1
8 61103KRY900 COLLAR A, FR. FENDER 4
9 61105KRY900 RUBBER, FR. FENDER MOUNTING 4
10 960010603000 BOLT, FLANGE, 6X30 4
11 45458KWF900 GUIDE COMP., BRAKE CABLE 1
