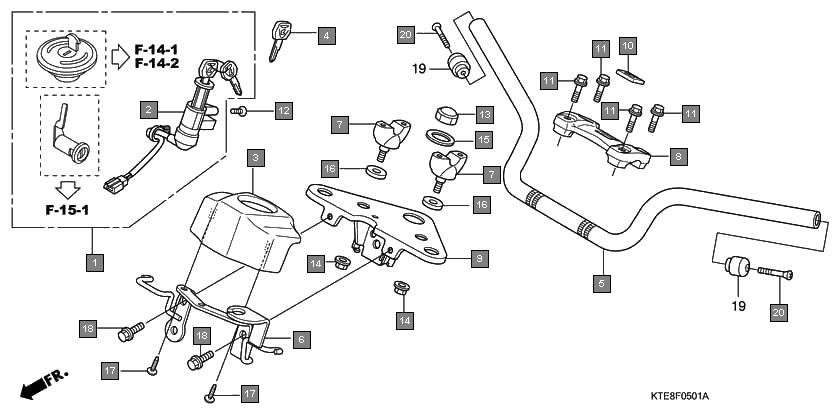

Motorcycles CBF Stunner CBF1259 Frame Handle pipe/top bridge(2)
Ref.No. Part No. Description Oty
1 35010KWF900 KEY SET 1
2 35010KWF960 KEY SET 1
3 35100KWF901 SWITCH ASSY., COMBINATION & LOCK 1
4 35105KWF900 COVER, COMBINATION SWITCH 1
5 35121KSP910 KEY, BLANK 1
6 35121KWF960 KEY, BLANK 1
7 53100KWF960ZA PIPE, STEERING HANDLE *NH303M* MAT AXIS GRAY METALLIC 1
8 53100KWF900ZA PIPE COMP., STEERING HANDLE *NH303M* MAT AXIS GRAY METALLIC 1
9 53127KWF930 GUIDE, CABLE 1
10 53127KWF900 GUIDE, CABLE 1
11 53127KWF950 GUIDE, CABLE 1
12 53130KTE910 HOLDER, HANDLE UNDER 2
13 53131KWF900ZA HOLDER, HANDLE UPPER *NH303M* MAT AXIS GRAY METALLIC 1
14 53230KWF900 BRIDGE COMP., FORK TOP 1
15 86150KPG901 EMBLEM, PRODUCT(MARUI) 1
16 90117383000 BOLT, FLANGE, 6X28 4
17 90164KPL900 SCREW, U-LOCK FLAT, 6X12 2
18 90304KSP900 NUT, STEERING STEM 1
19 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 2
20 90503KSP900 WASHER, STEERING STEM 1
21 90521427770 WASHER, 10.3MM 2
22 9390325210 SCREW, TAPPING, 5X12 2
23 957010601408 BOLT, FLANGE, 6X14 2
24 53104KWF960 WEIGHT A, HANDLE 2
25 53104KWF961 WEIGHT A, HANDLE 1
26 90107MCT771 SCREW, OVAL, 6X35 2
