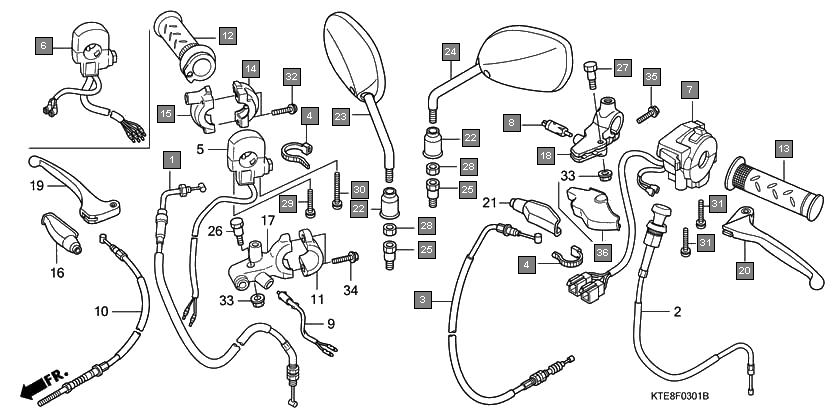

Motorcycles CBF Stunner CBF1259 Frame Handle lever/switch/cable(2)
Ref.No. Part No. Description Oty
1 17910KWF901 CABLE COMP., THROTTLE 1
2 17910KWF951 CABLE COMP., THROTTLE 1
3 17950KWF900 CABLE COMP., CHOKE 1
4 22870KWF900 CABLE COMP., CLUTCH 1
5 32161KSP920 BAND B1, WIRE 2
6 35150KWF921 SWITCH ASSY., STARTER 1
7 35150KWF931 SWITCH ASSY., STARTER 1
8 35200KWF920 SWITCH ASSY., WINKER 1
9 35200KWF900 SWITCH ASSY., WINKER 1
10 35330KEJ900 SWITCH COMP., FR. LEVER 1
11 35340KWF900 SWITCH ASSY., FR. STOP 1
12 45450KWF900 CABLE COMP., FR. BRAKE 1
13 45517166006 HOLDER, MASTER CYLINDER 1
14 53140KWF950 GRIP COMP., THROTTLE 1
15 53140KSP900 GRIP COMP., THROTTLE 1
16 53166KSPA70 GRIP, L. HANDLE 1
17 53166KSP900 GRIP, L. HANDLE 1
18 53168KTE910 HOUSING, UNDER THROTTLE 1
19 53167KWF900 HOUSING, UPPER THROTTLE 1
20 53171KCC900 COVER, R. HANDLE LEVER 1
21 53171KFN870 BRACKET, R. HANDLE LEVER 1
22 53172KTE930 BRACKET, L. HANDLE LEVER 1
23 53172KTE910 BRACKET, L. HANDLE LEVER 1
24 53175KFN870 LEVER COMP., R. HANDLE 1
25 53178KWF900 LEVER COMP., L. HANDLE 1
26 53179KTC900 COVER, L. HANDLE LEVER 1
27 88114KFN950 CAP, LOCK NUT 2
28 88210KWF901 MIRROR COMP., R. 1
29 88220KWF901 MIRROR COMP., L. 1
30 90103KTE920 BOLT, ADAPTER, 10MM 2
31 90113KWF900 BOLT, HANDLE LEVER PIVOT 1
32 90114428870 BOLT, HANDLE LEVER PIVOT 1
33 90114310000 BOLT, HANDLE LEVER PIVOT 1
34 90201MW3620 NUT, HEX., 10MM (LEFT HAND THREAD) 2
35 93500040320G SCREW, PAN, 4X32 1
36 93500040450G SCREW, PAN, 4X45 1
37 93500050200G SCREW, PAN, 5X20 2
38 93500050220G SCREW, PAN, 5X22 2
39 9405006000 NUT, FLANGE, 6MM 1
40 9405006000 NUT, FLANGE, 6MM 2
41 960010602207 BOLT, FLANGE, 6X22 2
42 960010602507 BOLT, FLANGE, 6X25 1
43 53179KWF950 COVER, L. HANDLE LEVER 1
