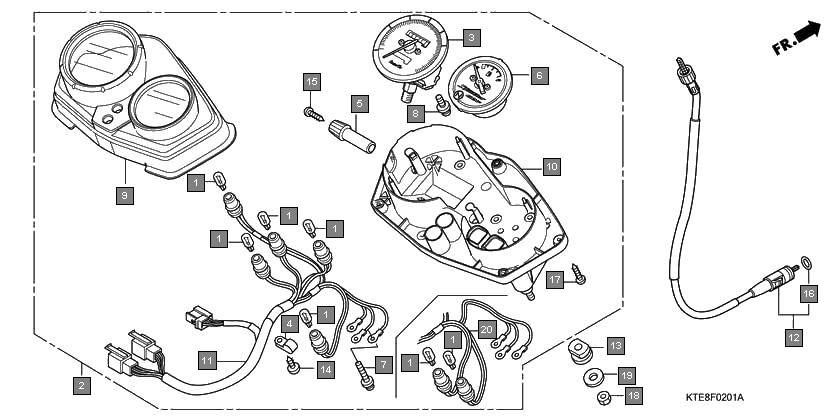

Motorcycles CBF Stunner CBF1259 Frame Meter(2)
Ref.No. Part No. Description Oty
1 34908KVE900 BULB, WEDGE BASE(T10) (12V 1.7W)(TOSHIBA) 5
2 34908KVE900 BULB, WEDGE BASE(T10) (12V 1.7W)(TOSHIBA) 6
3 37100KWF902 METER ASSY., COMBINATION 1
4 37100KWF932 METER ASSY., COMBINATION 1
5 37100KWF961 METER ASSY., COMBINATION 1
6 37200KWF901 SPEEDOMETER ASSY.(KPH) 1
7 37200KWF951 SPEEDOMETER ASSY.(KPH) 1
8 37215KS3901 CLAMP 1
9 37220KWF901 KNOB 1
10 37300KWF901 METER COMP., FUEL 1
11 37300KWF961 METER COMP., FUEL 1
12 37305KE5008 SCREW-WASHER, 3X22 3
13 37305MAW621 SCREW-WASHER, 4X12 2
14 37610KWF901 CASE ASSY., UPPER 1
15 37610KWF931 CASE ASSY., UPPER 1
16 37612KWF901 CASE ASSY., UNDER 1
17 37612KWF951 CASE ASSY., UNDER 1
18 37619KWF902 SOCKET COMP. 1
19 44830KWF900 CABLE COMP., SPEEDOMETER 1
20 80101443000 RUBBER, RR. FENDER CUSHION 4
21 90109MZ5008 SCREW, TAPPING, 4X14 1
22 90158KM7911 SCREW, PAN, 2X6 1
23 91352671003 O-RING, 8.5X1.5(ARAI) 1
24 91352671004 O-RING, 8.5X1.5(NOK) 1
25 9390322420 SCREW, TAPPING, 3X16 6
26 94001060700S NUT, HEX., 6MM 4
27 9410306700 WASHER, PLAIN, 6MM 4
28 37619KWF961 SOCKET COMP. 1
