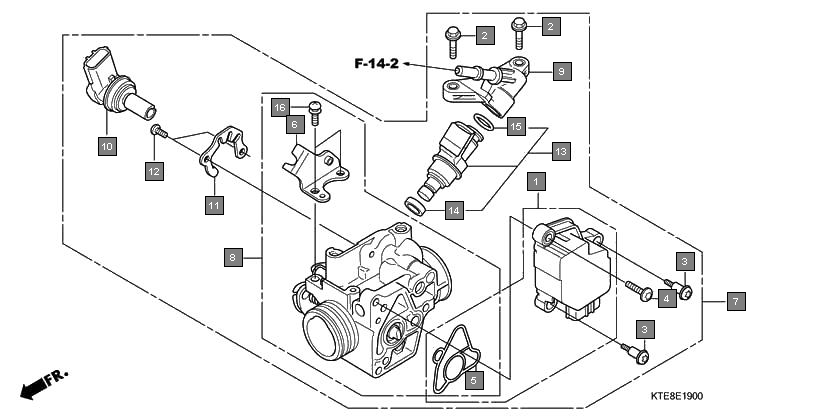

Motorcycles CBF Stunner CBF1259 Engine Throttle body
Ref.No. Part No. Description Oty
1 16060KWF941 SENSOR SET 1
2 16080KPH701 BOLT, FLANGE, 5X20 2
3 16081KPH701 SCREW, TORX, 5X8.7 2
4 16082KPH701 SCREW, TORX, 5X17 1
5 16083KTR941 O-RING, THROTTLE BODY 1
6 16169KWF941 STAY, WIRE 1
7 16400KWF942 THROTTLE BODY ASSY.(GQM6A B) 1
8 16410KWF941 BODY SET 1
9 16422KWF941 JOINT, INJECTOR 1
10 16430GFM902 VALVE ASSY., IDLE AIR CONTROL 1
11 16432GFM901 PLATE, IDLE AIR CONTROL VALVE 1
12 16433HN8A61 SCREW, TORX 2
13 16450KVBT01 INJECTOR ASSY., FUEL 1
14 16472KPH701 RING, SEAL 1
15 91301KPH701 O-RING, 7.3X2.2 1
16 938920501218 SCREW-WASHER, 5X12 2
