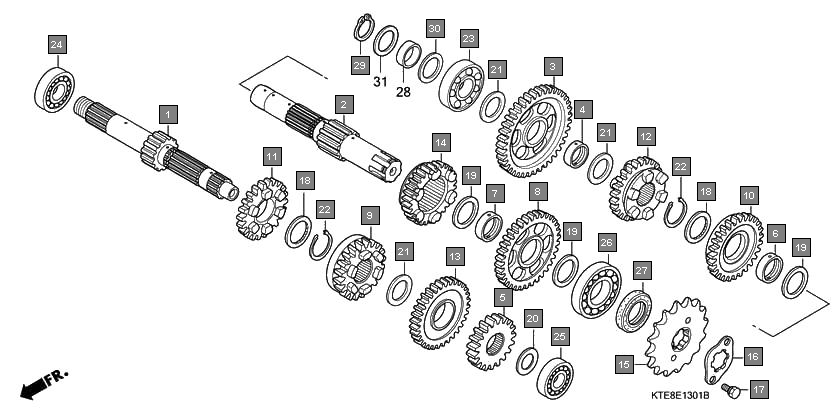

Motorcycles CBF Stunner CBF1259 Engine Transmission(2)
Ref.No. Part No. Description Oty
1 23210KWF900 MAINSHAFT COMP.(13T) 1
2 23220KWF900 COUNTERSHAFT COMP. 1
3 23421KWF900 GEAR, COUNTERSHAFT LOW(40T) 1
4 23427KRM840 BUSH, 17X20.5X8.0 1
5 23427KSP910 BUSH, 17X20.5X8.0 1
6 23431KWF900 GEAR, MAINSHAFT SECOND(18T) 1
7 23432KWF900 BUSH, 20X23X10.8 1
8 23432KSP910 BUSH, 20MM 1
9 23432KRM840 BUSH, 20MM 1
10 23441KWF900 GEAR, COUNTERSHAFT SECOND(35T) 1
11 23451KWF900 GEAR, MAINSHAFT THIRD(19T) 1
12 23461KWF900 GEAR, COUNTERSHAFT THIRD(28T) 1
13 23471KWF900 GEAR, MAINSHAFT FOURTH(21T) 1
14 23481KWF900 GEAR, COUNTERSHAFT FOURTH(25T) 1
15 23491KWF900 GEAR, MAINSHAFT FIFTH(26T) 1
16 23501KWF900 GEAR, COUNTERSHAFT FIFTH(27T) 1
17 23801KWF940 SPROCKET, DRIVE(16T) 1
18 23801KTE910 SPROCKET, DRIVE(14T) 1
19 23811KR3600 PLATE A2, FIXING 1
20 90084041000 BOLT, DRIVE SPROCKET FIXING 2
21 90453KVS900 WASHER, SPLINE, 20MM 2
22 90453KWF900 WASHER, THRUST, 20MM 2
23 90454KPS900 WASHER B, THRUST, 20MM 3
24 90454KWF900 WASHER, THRUST, 20MM B 3
25 90456KRM840 WASHER, THRUST, 12MM 1
26 90456KWF900 WASHER, THRUST, 12MM 1
27 90458KVS900 WASHER, THRUST, 17MM 3
28 90458KWF900 WASHER, THRUST, 17MM 3
29 90605KWF900 SET RING, 20MM 2
30 91003KSP910 BEARING, RADIAL BALL, 17X42X12 1
31 91004KTN900 BEARING, RADIAL BALL, 17X40X12 1
32 91005KTN900 BEARING, RADIAL BALL, 12X32X10 1
33 91006KTN900 BEARING, RADIAL BALL, 20X47X14 1
34 91216KSP911 OIL SEAL, 20X34X7(ARAI) 1
35 28232KWF940 BUSH, 17MM 1
36 90602KRM840 CIRCLIP, EXTERNAL, 17MM 1
37 90458KVS900 WASHER, THRUST, 17MM 1
