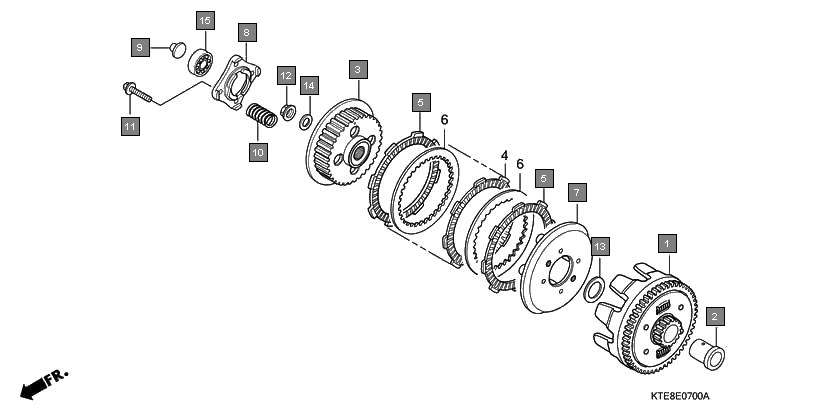

Motorcycles CBF Stunner CBF1259 Engine Clutch
Ref.No. Part No. Description Oty
1 22100KWF900 OUTER COMP., CLUTCH 1
2 22100KWF940 OUTER COMP., CLUTCH 1
3 22115KSP910 GUIDE, CLUTCH OUTER 1
4 22120KTE910 CENTER, CLUTCH 1
5 22120KRM840 CENTER, CLUTCH 1
6 22201KPM850 DISK, CLUTCH FRICTION(4X8X45) 2
7 22201KPM850 DISK, CLUTCH FRICTION(4X8X45) 3
8 22201MR8000 DISK, CLUTCH FRICTION 2
9 22321KPS900 PLATE, CLUTCH 3
10 22321KPS900 PLATE, CLUTCH 4
11 22355KRM840 PLATE, CLUTCH PRESSURE 1
12 22355KTE910 PLATE, CLUTCH PRESSURE 1
13 22361KPK900 PLATE, CLUTCH LIFTER 1
14 22366KRM840 ROD, CLUTCH LIFTER 1
15 22401KRM840 SPRING, CLUTCH 4
16 22401KWF940 SPRING, CLUTCH 4
17 90008KRM840 BOLT, FLANGE, 6X25 4
18 90202KRM840 NUT, SPECIAL FLANGE, 14MM 1
19 90401KTE910 WASHER, PLAIN, 17MM 1
20 90401KRM840 WASHER, PLAIN, 17MM 1
21 90501KPTA00 WASHER, 14.1X29X2.8 1
22 961006003000 BEARING, RADIAL BALL, 6003 1
