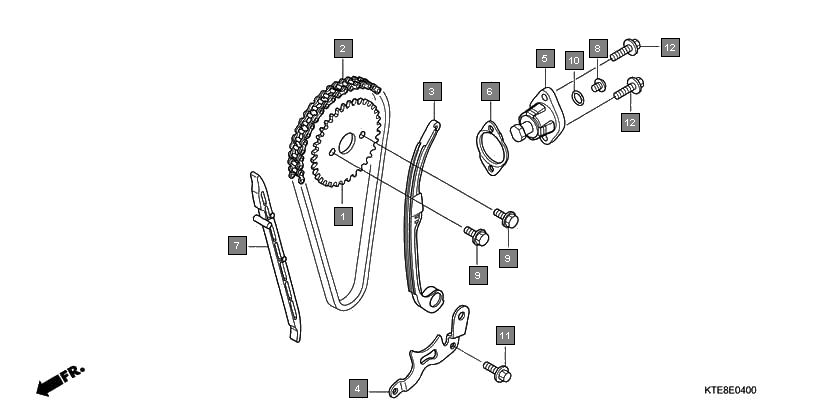

Motorcycles CBF Stunner CBF1259 Engine Cam chain/tensioner
Ref.No. Part No. Description Oty
1 14321KTE910 SPROCKET, CAM(34T) 1
2 14321KRM840 SPROCKET, CAM(34T) 1
3 14401KTE910 CHAIN, CAM(94L) 1
4 14401KCW851 CHAIN, CAM(94L)(BORG WARNER) 1
5 14510KWF900 TENSIONER ASSY., CAM CHAIN 1
6 14510KRM842 TENSIONER ASSY., CAM CHAIN 1
7 14515KRM840 PLATE, TENSIONER SETTING 1
8 14520KSP910 LIFTER ASSY., TENSIONER 1
9 14520KWF940 LIFTER ASSY., TENSIONER 1
10 14560KSP910 GASKET, TENSIONER LIFTER 1
11 14610KTE910 GUIDE, CAM CHAIN 1
12 14610KSP910 GUIDE, CAM CHAIN 1
13 90005KRM840 SCREW, PAN, 6X6 1
14 90005KWF940 SCREW, PAN, 6X6 1
15 90083KSP910 BOLT, KNOCK, 5MM 2
16 91306KRM840 O-RING, 1.5X9.5 1
17 957010601600 BOLT, FLANGE, 6X16 1
18 960010602200 BOLT, FLANGE, 6X22 2
19 90012KWF940 BOLT, FLANGE, 6X22 2
