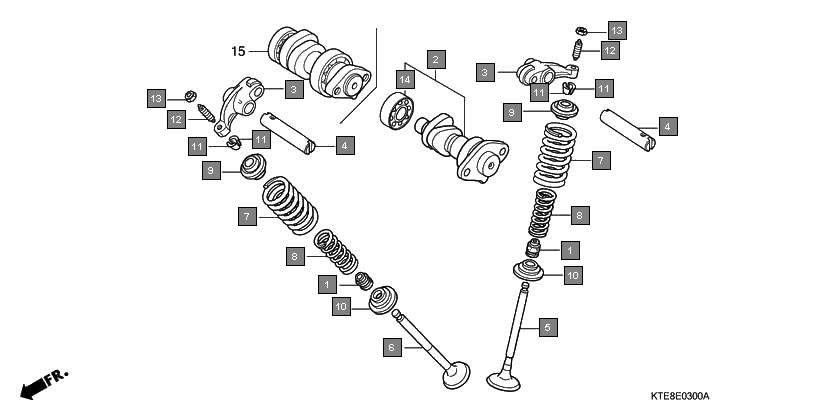

Motorcycles CBF Stunner CBF1259 Engine Camshaft/valve
Ref.No. Part No. Description Oty
1 12209KPL901 SEAL, VALVE STEM 2
2 14430KSP910 ARM COMP., VALVE ROCKER 2
3 14451KRM840 SHAFT, ROCKER ARM 2
4 14711KTE910 VALVE, IN. 1
5 14721KWF900 VALVE, EX. 1
6 14751KRM871 SPRING, VALVE 2
7 14771KVE900 RETAINER, VALVE SPRING 2
8 14775KVE900 SEAT, VALVE SPRING 2
9 14781MA6000 COTTER, VALVE 4
10 90012KK3830 SCREW, TAPPET ADJUSTING 2
11 90206KSP910 NUT, TAPPET ADJUSTING 2
12 14100KWF901 CAMSHAFT COMP. 1
13 14100KWF900 CAMSHAFT COMP. 1
