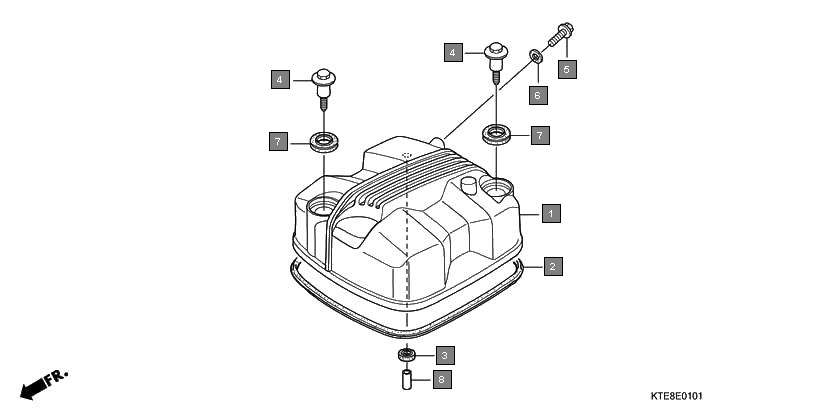

Motorcycles CBF Stunner CBF1259 Engine Cylinder head cover(throttle body)
Ref.No. Part No. Description Oty
1 12311KWF960 COVER, CYLINDER HEAD 1
2 12391KRM840 GASKET, HEAD COVER 1
3 12396KRM840 GASKET B, HEAD COVER 1
4 90003KWF940 BOLT, HEAD COVER 2
5 90011KWF940 BOLT, FLANGE, 6X12 1
6 90463KRM840 WASHER, SEALING, 6.2X12X1.2 1
7 90543KSP910 RUBBER, MOUNTING 2
8 91105KSP910 DOWEL PIN, 8X14 1
