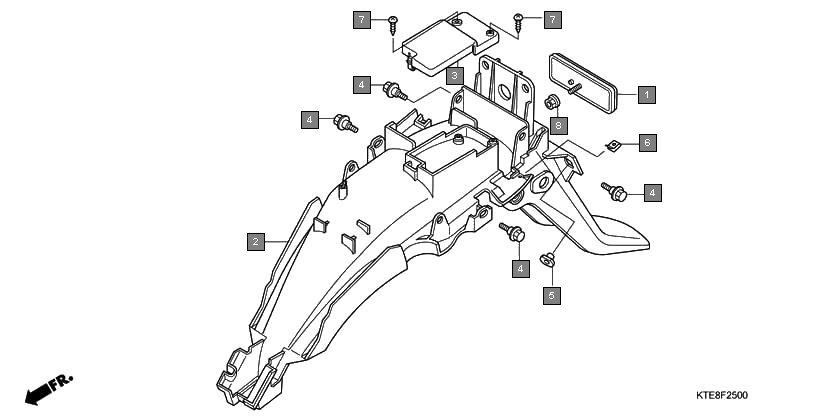

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 33741KPL901 | REFLECTOR, REFLEX | 1 |
2 | 80101KTE910 | FENDER, RR. | 1 |
3 | 80102KTE910 | COVER, TOOL BOX | 1 |
4 | 90111162000 | BOLT, FLANGE, 6MM | 4 |
5 | 90311KTE910 | NUT, RR. FENDER | 2 |
6 | 90344KTE910 | NUT, CLIP, 4MM | 2 |
7 | 9390324320 | SCREW, TAPPING, 4X12 | 2 |
8 | 9405005000 | NUT, FLANGE, 5MM | 1 |
