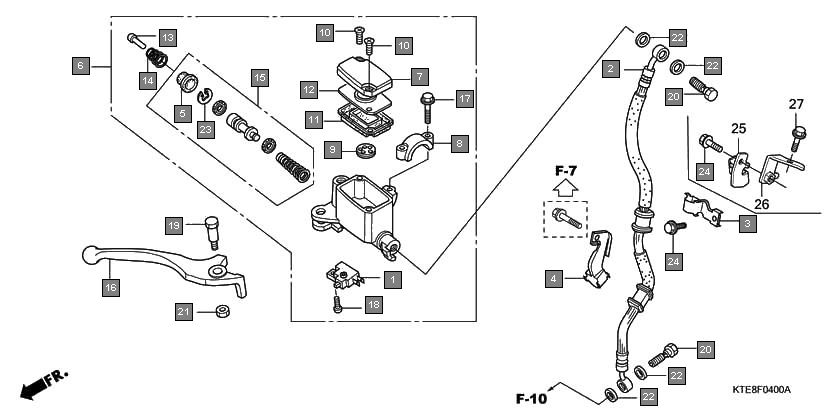

Motorcycles CB Shine CBF1256 Frame Fr. brake master cylinder
Ref.No. Part No. Description Oty
1 35340KCK900 SWITCH ASSY., FR. STOP 1
2 45126KTE921 HOSE COMP., FR. BRAKE 1
3 45155KTE920 CLAMPER A, FR. BRAKE HOSE 1
4 45156KSP900 CLAMPER B, FR. BRAKE HOSE 1
5 45504KCC841 BOOT COMP. 1
6 45510KSP901 CYLINDER SUB ASSY., FR. BRAKE MASTER 1
7 45513KCC841 CAP, MASTER CYLINDER 1
8 45517KCC841 HOLDER, MASTER CYLINDER 1
9 45518KCC841 SEPARATOR COMP. 1
10 45519KCC841 SCREW, FLAT 2
11 45520KCC841 DIAPHRAGM 1
12 45521KCC841 PLATE, DIAPHRAGM 1
13 45525KCC841 ROD, PUSH 1
14 45526KCC841 SPRING, PUSH ROD 1
15 45530KCC841 CYLINDER SET, MASTER 1
16 53175KCC840 LEVER, R. STEERING HANDLE 1
17 90111KCC841 BOLT, FLANGE, 6X25 2
18 90112KCC841 SCREW, PAN, 4X8 1
19 90114KTE920 BOLT, HANDLE LEVER 1
20 90145GW3981 BOLT, OIL, 10X22 2
21 90303KCC841 NUT 1
22 90545300000 WASHER, OIL BOLT 4
23 90651KCC841 CIRCLIP 1
24 960010601200 BOLT, FLANGE, 6X12 1
