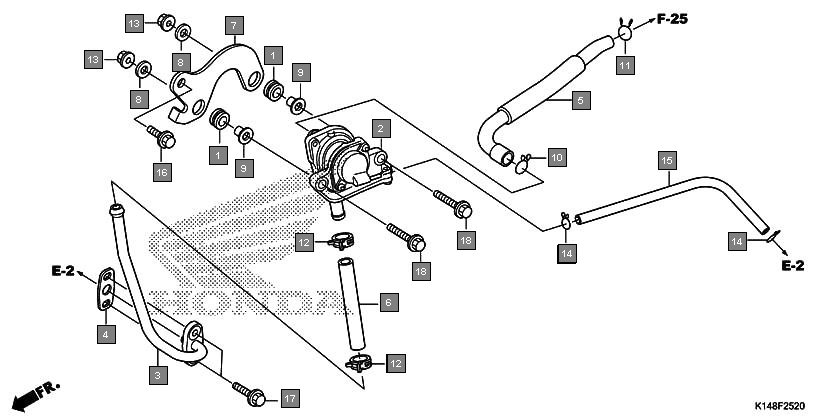

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 17622GB7900 | RUBBER, CUSHION | 2 |
2 | 18600KZAW01 | VALVE ASSY., AIR SUCTION | 1 |
3 | 18640K14900 | PIPE COMP., AIR FEED | 1 |
4 | 18645KPHC00 | GASKET, AIR FEED PIPE | 1 |
5 | 18651K14900 | TUBE A, AIR SUCTION VALVE | 1 |
6 | 18652KZAW00 | TUBE B, AIR SUCTION VALVE | 1 |
7 | 50535KZAW00 | BRACKET, AIR SUCTION VALVE | 1 |
8 | 90450ZA0000 | WASHER, PLAIN, 6X16 | 2 |
9 | 90501KC2750 | WASHER, REGULATOR SETTING | 2 |
10 | 90651K14900 | CLIP, TUBE(B15) | 1 |
11 | 90651MK3780 | CLIP, TUBE(B12.5) | 1 |
12 | 90678MR1690 | CLIP, HOSE | 2 |
13 | 9405006000 | NUT, FLANGE, 6MM | 2 |
14 | 9500202070 | CLIP, TUBE(B7) | 2 |
15 | 950053527020 | TUBE, 3.5X270(95005-35001-20M) | 1 |
16 | 957020601208 | BOLT, FLANGE, 6X12 | 1 |
17 | 957010601208 | BOLT, FLANGE, 6X12 | 1 |
18 | 957020602000 | BOLT, FLANGE, 6X20 | 2 |
19 | 957010602000 | BOLT, FLANGE, 6X20 | 2 |
20 | 960010602800 | BOLT, FLANGE, 6X28 | 2 |
