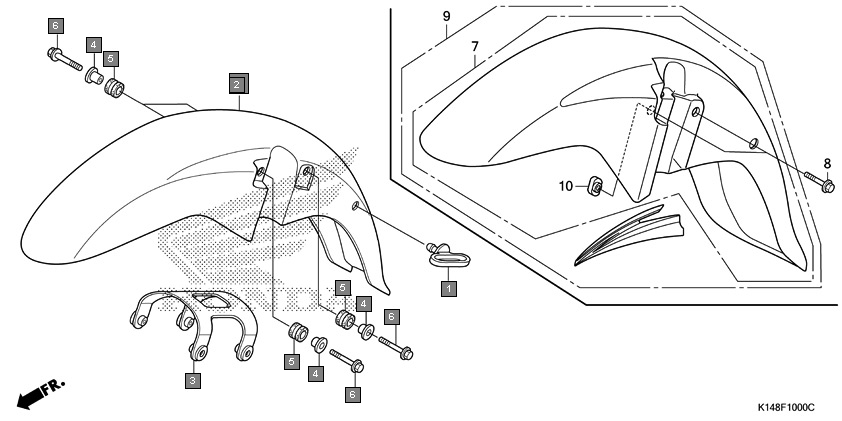

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 45451KTE600 | GUIDE, FR. FENDER CABLE | 1 |
2 | 61100KTE740ZC | FENDER, FR. *NH1* BLACK | 1 |
3 | 61100KTE740ZG | FENDER, FR. *R316M* ALPHA RED METALLIC | 1 |
4 | 61100KTE740ZD | FENDER, FR. *NHB04M* MONSOON GRAY METALLIC | 1 |
5 | 61100KTE740ZB | FENDER, FR. *NH411M* FORCE SILVER METALLIC | 1 |
6 | 61100KTE740ZF | FENDER, FR. *YR305M* MAPLE BROWN METALLIC | 1 |
7 | 61102KTE600 | STAY, FR. FENDER | 1 |
8 | 61103KTE600 | COLLAR, FR. FENDER | 4 |
9 | 61105KTE600 | RUBBER, FR. FENDER MOUNTING | 4 |
10 | 960010602800 | BOLT, FLANGE, 6X28 | 4 |
