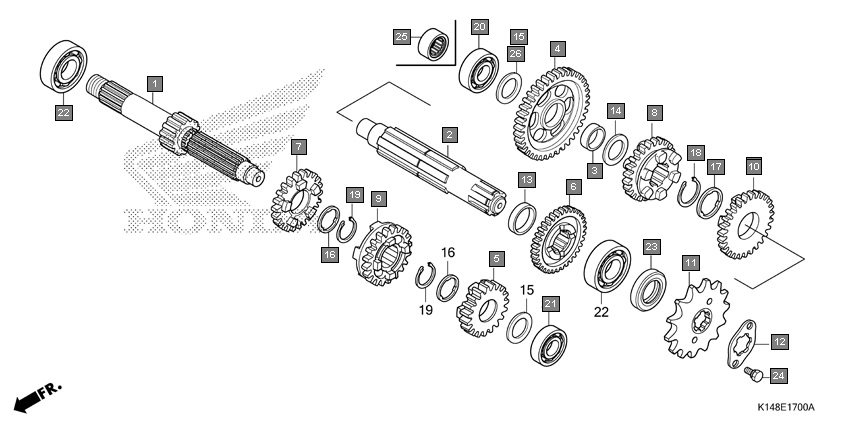

Motorcycles Dream Yuga CB110MD Engine Transmission
Ref.No. Part No. Description Oty
1 23211KWS900 MAINSHAFT(11T) 1
2 23221KWS900 COUNTERSHAFT 1
3 23415KPH900 BUSH, 15MM 1
4 23421KWS900 GEAR, COUNTERSHAFT FIRST(35T) 1
5 23431K14900 GEAR, MAINSHAFT SECOND(17T) 1
6 23441K14900 GEAR, COUNTERSHAFT SECOND(30T) 1
7 23451K14900 GEAR, MAINSHAFT THIRD(21T) 1
8 23461K14901 GEAR, COUNTERSHAFT THIRD(25T) 1
9 23471K14900 GEAR, MAINSHAFT FOURTH(24T) 1
10 23481KZAW00 GEAR, COUNTERSHAFT FOURTH(22T) 1
11 23801KWB600 SPROCKET, DRIVE(14T) 1
12 23802GN5910 PLATE, FIXING 1
13 23911KZAW00 COLLAR, 20MM 1
14 90412187000 WASHER, THRUST, 15MM 1
15 90412KPH900 WASHER, SPECIAL, 12X23 2
16 90461035000 WASHER, SPLINE, 17MM 2
17 90461459010 WASHER, SPLINE, 20MM 1
18 90601459000 CIRCLIP, 20MM 1
19 90601KRM840 CIRCLIP, 17MM 2
20 91004K14901 BEARING, RADIAL BALL, 6201(NEI) 1
21 91004KWS901 BEARING, RADIAL BALL, 6201(FAG) 1
22 91005K14901 BEARING, BALL RADIAL, 6001(NEI) 1
23 91005KWS901 BEARING, RADIAL BALL, 6001(FAG) 1
24 91006K14901 BEARING, RADIAL BALL, 6203 (SKF) 2
25 91006KWS902 BEARING, RADIAL BALL, 6203(NSK) 2
26 91204KWB601 OIL SEAL, 17X29X5 1
27 93101060100A BOLT, HEX., 6X10 2
