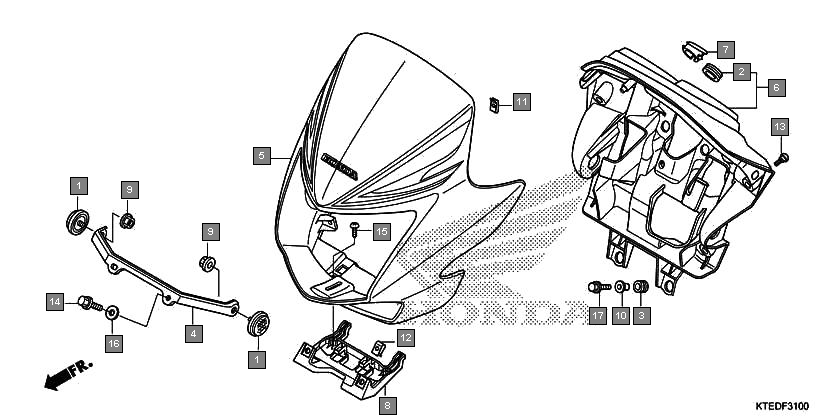

Motorcycles CB Shine CBF125MCC Frame Front cowl
Ref.No. Part No. Description Oty
1 33740KTE601 REFLECTOR, FR. SIDE REFLEX 2
2 37312KT2000 GROMMET, COMBINATION SWITCH 1
3 61103357000 RUBBER, FR. FENDER MOUNTING 4
4 61104KTE600 STAY, REFLECTOR 1
5 61300KTE600ZA VISOR SET, FR.(WL) *TYPE5* 1
6 61300KTE600ZB VISOR SET, FR.(WL) *TYPE4* 1
7 61300KTE600ZC VISOR SET, FR.(WL) *TYPE3* 1
8 61300KTE600ZD VISOR SET, FR.(WL) *TYPE2* 1
9 61300KTE600ZE VISOR SET, FR.(WL) *TYPE1* 1
10 61300KTE690ZA VISOR SET, FR.(WL) *TYPE5* 1
11 61300KTE690ZD VISOR SET, FR.(WL) *TYPE2* 1
12 61300KTE690ZB VISOR SET, FR.(WL) *TYPE4* 1
13 61300KTE690ZC VISOR SET, FR.(WL) *TYPE3* 1
14 61300KTE690ZE VISOR SET, FR.(WL) *TYPE1* 1
15 61310KTE600 COVER COMP., HEADLIGHT RR. 1
16 61313KTE600 GROMMET, VISOR 1
17 64315KTE600 STAY, FR. NUMBER PLATE 1
18 90302KTE911 NUT, FLANGE SPECIAL, 6MM (SIMMONDS MARSHALL) 2
19 90310KWS900 COLLAR, FR. COWL 4
20 90320GC3000 NUT, SPRING, 5MM 5
21 90320GC3000 NUT, SPRING, 5MM 2
22 90320KTE600 NUT, SPRING, 5MM 2
23 91509GE2760 SCREW, PAN, 5X11.5 5
24 92101050120A BOLT, HEX., 5X12 2
25 9390325220 SCREW, TAPPING, 5X12 2
26 9410105000 WASHER, PLAIN, 5MM 2
27 960010602200 BOLT, FLANGE, 6X22 4
