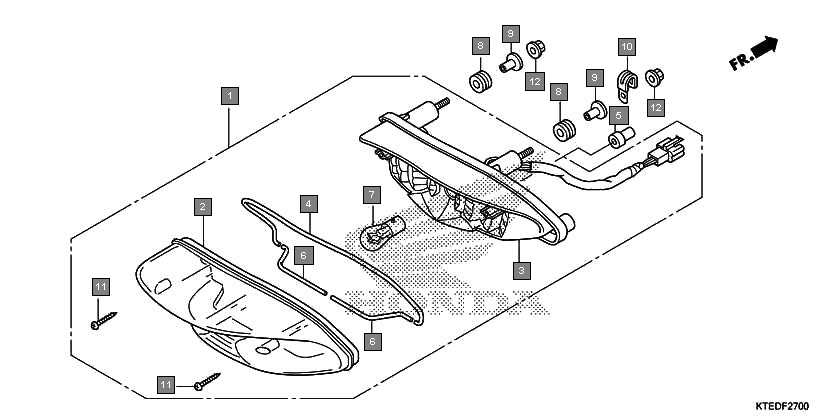

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 33701KTE600 | TAILLIGHT ASSY.(12V 21/5W) | 1 |
2 | 33703KTE910 | LENS COMP., TAILLIGHT | 1 |
3 | 33704KTE910 | BASE COMP., TAILLIGHT | 1 |
4 | 33705KTE910 | PACKING, LENS | 1 |
5 | 33706KTE910 | GROMMET, TAILLIGHT | 1 |
6 | 33707KTE910 | PACKING, LENS | 2 |
7 | 34907KVN901 | BULB, TAIL & STOP LIGHT (12V 21/5W) | 1 |
8 | 61103357000 | RUBBER, FR. FENDER MOUNTING | 2 |
9 | 61104KM7910 | COLLAR, FAIRING SETTING | 2 |
10 | 90651KTE910 | CLIP, 4X50 | 1 |
11 | 9390324580 | SCREW, TAPPING, 4X20 | 2 |
12 | 9405005000 | NUT, FLANGE, 5MM | 2 |
