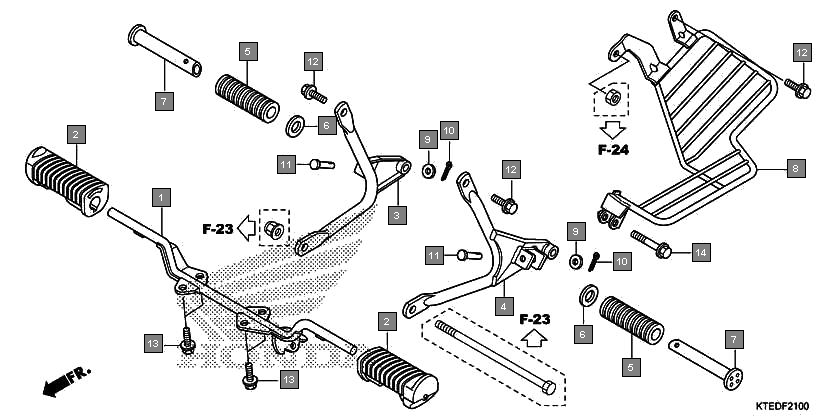

Motorcycles CB Shine CBF125MCC Frame Step
Ref.No. Part No. Description Oty
1 50610KTE910 BAR COMP., STEP 1
2 50660GB2000 RUBBER, STEP 2
3 50701KTE910 BRACKET COMP., R. PILLION STEP 1
4 50702KTE910 BRACKET COMP., L. PILLION STEP 1
5 50710KTE910 RUBBER, PILLION STEP 2
6 50712405000 WASHER, PILLION STEP 2
7 50715405000 BAR, PILLION STEP 2
8 51103KTEA00 GUARD, SARI 1
9 9410106000 WASHER, PLAIN, 6MM 2
10 9420116150 PIN, SPLIT, 1.6X15 2
11 9501581000 PIN A, PILLION STEP 2
12 957010801600 BOLT, FLANGE, 8X16 3
13 957020801600 BOLT, FLANGE, 8X16 3
14 957010802000 BOLT, FLANGE, 8X20 4
15 957020802000 BOLT, FLANGE, 8X20 4
16 957010803500 BOLT, FLANGE, 8X35 1
17 957020803500 BOLT, FLANGE, 8X35 1
