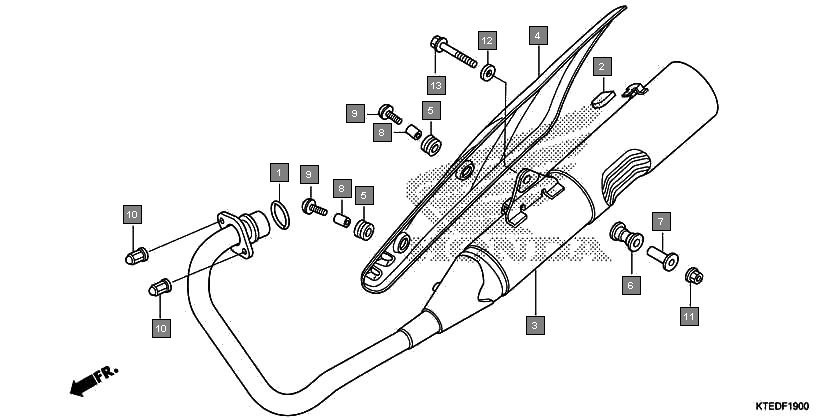

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 18291KSP901 | GASKET, EX. PIPE | 1 |
2 | 18293KPK900 | RUBBER, PROTECTOR PACKING | 1 |
3 | 18300KTE600 | MUFFLER COMP., EX. | 1 |
4 | 18311KTEA00 | COVER, MUFFLER | 1 |
5 | 18345MBT610 | RUBBER, PROTECTOR MOUNTING | 2 |
6 | 18421438670 | RUBBER, MUFFLER MOUNTING | 1 |
7 | 18442KRC900 | COLLAR, MUFFLER MOUNTING | 1 |
8 | 33619459840 | COLLAR, WINKER STAY | 2 |
9 | 90107KTE910 | BOLT, BODY COVER SETTING | 2 |
10 | 90305KSP900 | NUT, EXHAUST PIPE, 8MM | 2 |
11 | 9405010000 | NUT, FLANGE, 10MM | 1 |
12 | 9410310000 | WASHER, PLAIN, 10MM | 1 |
13 | 958011005500 | BOLT, FLANGE, 10X55 | 1 |
14 | 958021005500 | BOLT, FLANGE, 10X55 | 1 |
