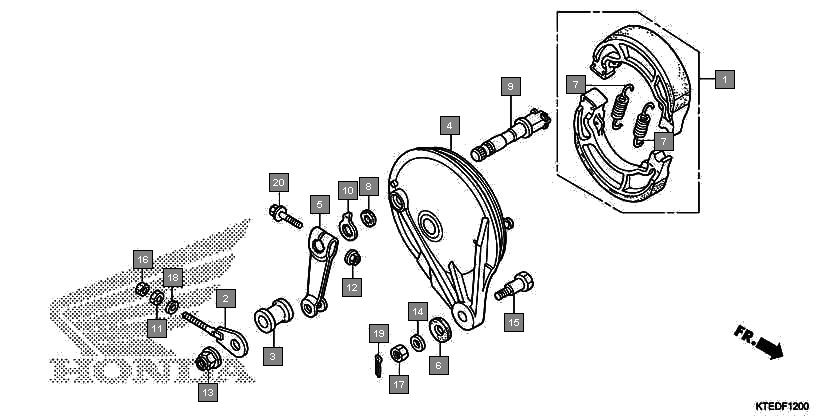

Motorcycles CB Shine CBF125MCC Frame Rear brake panel
Ref.No. Part No. Description Oty
1 06430KRP980 SHOE SET, BRAKE(ASK) 1
2 40543KTE910 ADJUSTER COMP., R. CHAIN 1
3 42313KTE910 COLLAR, RR. BRAKE PANEL SIDE 1
4 43100KTE950ZA PANEL COMP., RR. BRAKE *NH303M* MAT AXIS GRAY METALLIC 1
5 43410KCT690 ARM, RR. BRAKE 1
6 43434ME1670 RUBBER, STOPPER ARM 1
7 45133KPL900 SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) 2
8 45134250000 DUST SEAL, BRAKE CAM 1
9 45141KTC900 CAM, FR. BRAKE 1
10 45145KFM900 INDICATOR, FR. BRAKE (FOR RR.) 1
11 90302KBP900 NUT, SPECIAL, 6MM 1
12 90302KTE911 NUT, FLANGE SPECIAL, 6MM (SIMMONDS MARSHALL) 1
13 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
14 90306KST942 NUT, FLANGE, 12MM (LEO FASTENERS) 1
15 90505425000 WASHER, 8MM 1
16 9281110000 BOLT A, BRAKE STOPPER 1
17 94001060000S NUT, HEX., 6MM 1
18 94001080000S NUT, HEX., 8MM 1
19 9410106000 WASHER, PLAIN, 6MM 1
20 9420120150 PIN, SPLIT, 2.0X15 1
21 957010603500 BOLT, FLANGE, 6X35 1
22 957020603500 BOLT, FLANGE, 6X35 1
